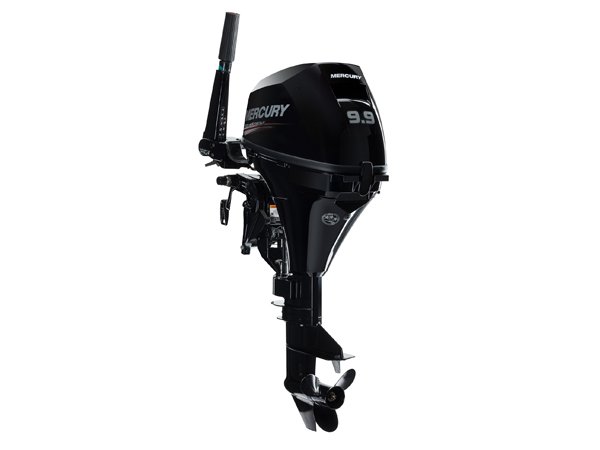

2017 Mercury 9.9 HP 9.9MH Outboard Motor
The portable Mercury 9.9hp outboard motor is lightweight, compact, and powerful making it a great choice for long shaft jon boats, skiffs, and small pontoons as well as auxiliary power for your sailboat. The Mercury 9.9 HP outboard engine is a two cylinder four-stroke marine engine that delivers smooth, quiet, fuel efficient power. The Mercury 9.9 HP Outboard Model #: 9.9MH comes equipped with a manual start and 15 inch shaft, tiller steering and auto ratchet trim. As with all new Mercury outboard motors, the factory provides a 3 year warranty that starts on the date of purchase.
2017 Mercury 9.9 HP 9.9MH Outboard Motor
- Compact and Lightweight
- Digital CD Ignition with Spark Advance
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes and Trim Tab
- Tiller Integrated F-N-R Gear Shifting
- Adjustable Steering Tension Control
- Twist-Grip Throttle with Tension Control
- Thermostat Controlled Water Cooling
- Auto Ratchet Trim System (5 positions)
- Shallow Water Drive
- Quiet Through-Propeller-Hub Exhaust
- 3.2 Gallon Fuel Tank and Fuel Line
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty
2017 Mercury 9.9 HP 9.9MH Outboard Motor
| Model | 9.9MH |
| Model Year | 2017 |
| SKU | 9.9MH-17 |
| Weight | 84.0000 |
| Manufacturer | Mercury |
| Country of Manufacture | Japan |
| Horsepower | 9.9hp |
| Shaft Length | 15″ (Short) |
| Steering | Tiller |
| Starting | Manual |
| Trim & Tilt | Manual |
| Fuel Delivery | Carburetor |
| Fuel Tank | External |
| Cylinder(s) | 2 |
| Displacement | 12.8 ci (208 cc) |
| Bore and Stroke | 2.16 x 1.73 in. (55 x 44 mm) |
| Full Throttle RPM Range | 5,000 – 6,000 |
| Ignition System | CDI with electronic spark advance |
| Induction Scavenging | SOHC |
| Valves per Cylinder | 2 |
| Fuel Type | 87 Octane (up to 10% ethanol content) |
| Fuel Tank / Fuel Line | 3.2 Gal. Fuel Tank + Quick Connect Fuel Line |
| Oil Type | SAE 10W-30 (Mercury 4-Stroke Outboard Oil) |
| Oil Capacity | 27 fl. Oz. (800 ml) |
| Lubrication | Trochoid Pump |
| Alternator | Optional 12V 76W 6A (installation required) |
| Cooling System | Water-cooled with thermostat |
| Saltwater Rated | YES |
| Gear Ratio | 2.08:1 |
| Gear Shift | Forward-Neutral-Reverse (shift in tiller handle) |
| Propeller | 8.5″ Diameter X 8.0″ Pitch 3-Blade Aluminum |
| Internal Battery | No |
2017 Mercury 9.9 HP 9.9MH Outboard Motor
What’s in the box?
- Fuel Tank (3.2 gallon)
- Quick Connect Fuel Line
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
