Description

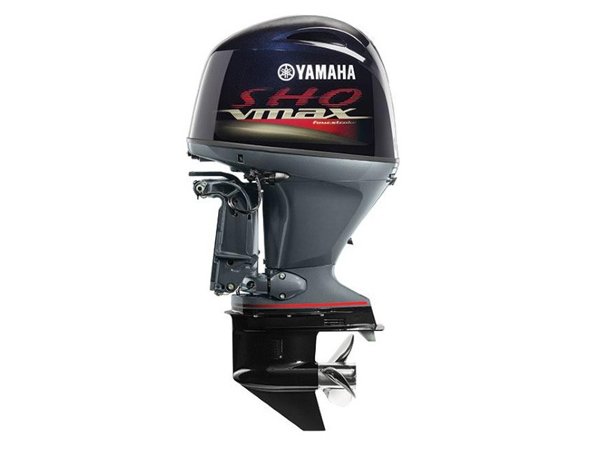

2017 Yamaha VF115 VMAX SHO Outboard Motor
Meet the next-gen ln-Line Four V MAX SHOs. Their advanced technology achieves the unthinkable-packing the signature VMAX SHO hole shot, midrange acceleration and super-high-output performance into ingeniously streamlined designs. With 16-valves. double overhead cams and electronic fuel injection, their next-gen tech packages are designed for maximum performance and efficient operation, and their DNA, undeniably V MAX SHO. On a bass or flats boat, or other performance hull, the four-stroke I4 V MAX SHOs will deliver the exhilarating performance that anglers crave and the competition admires.
2017 Yamaha VF115 VMAX SHO Outboard Motor
- 1.8L High Output Four Cylinder
- Double Overhead Camshafts
- 4 Large Radius Valves Per Cylinder
- 4 Independent Fuel Injectors
- Tuned Long Track Induction System
- Electronic Multi-Point Precision Fuel Injection
- Four-Into-One Exhaust
- Blow-By Gas Reburning System
- Offset Crankshaft
- Counterbalancing technology
- Compact, Lightweight Design
2017 Yamaha VF115 VMAX SHO Outboard Motor
Year 2017
Manufacturer Yamaha Marine
Model Name VF115
Trim Name LA
Generic Type (Primary) Four Stroke
Engine
Engine Type In-Line Four Cylinder
Engine Power 115 HP @ 5500 RPM
Alternator (Output): 35 Amp
Displacement 1832cc (111.8 ci)
Gear Ratio (Primary) 2.15:1
Lubrication Wet sump
Fuel Type Induction: EFI (DOHC)
Ignition System: TCI Micro Computer
Oil Type (Recommended): Yamalube® 4-M (See Owner’s Manual)
Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 87)
Capacities
Oil capacity 3.2 liters / 3.0 liters w/without filter
Range
Note Full Throttle RPM Range: 5300-6300 rpm
Dimensions
Length Shaft: 20″
Bore 3.19 in. (81 mm)
Stroke 3.5 in. (88.9 mm)
Weights
Dry Weight 377 lbs
Features
Features Degree of Tilt: 70° | Degree of Trim: -4° through +16°
Exhaust Through Propeller
Cooling Thermostatic Control
Features C.A.R.B. Rating: 3 Star
Note Ethanol Blend Limit: 10% Maximum
Intake Design Mechanical Single Throttle Valve
Note Gear Shift: Forward, Neutral, Reverse
Compression Ratio 10.0:1
Starter Electric w/PTT
Warranty
Warranty 3-year Pleasure, 3-year Government, 1-Year Commercial
