Description

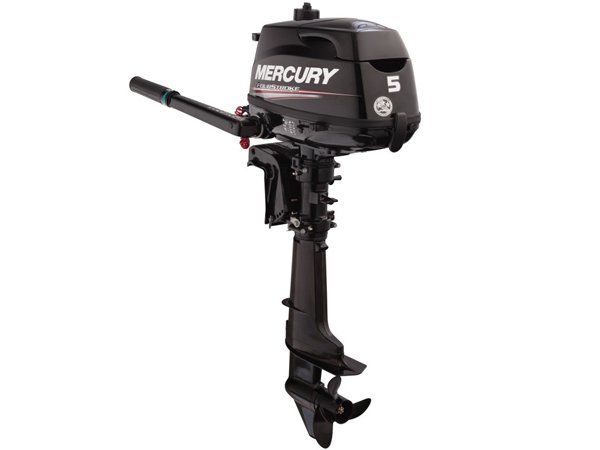

2018 Mercury 5 Hp 5MLHA Outboard Motor
Mercury Model # MLHA is a 2018 5HP outboard motor that is perfect for powering small skiffs, jon boats and inflatable boats. The 58 lb. 5 HP Mercury outboard is also perfect for auxillary power for your sailboat. Mercury Outboard engines are known for reliable, efficient power at an affordable price. A larger carburetor and propeller provide for the extra power you crave on the water. The Mercury 5 HP outboard model # 5MLHA is equipped with the long shaft 20 inches, an integrated gas tank, manual rope start, forward, neutral and reverse shift. The Mercury Factory warranty begins on date of purchase.
2018 Mercury 5 Hp 5MLHA Outboard Motor
- Compact and Lightweight
- 4 / 2 amp / 50 / 25 watt Charging System
- Digital CD Ignition with Spark Advance
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes
- Forward-Neutral-Reverse Gear Shift
- Adjustable Steering Tension Control
- Forward Mounted Gear Shift Selector
- Twist-Grip Throttle with Tension Control
- Integrated Carry Handle
- Thermostat Controlled Water Cooling
- Shallow Water Drive; 6 Trim Positions
- Quiet Through-Propeller-Hub Exhaust
- 6″ Pitch High Thrust Aluminum Propeller
- 1.15 Liter (.30 Gallon) Integral Fuel Tank
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty
2018 Mercury 5 Hp 5MLHA Outboard Motor
| MODEL | 5MLHA |
| MODEL YEAR | 2018 |
| SKU | 5MLHA-18 |
| WEIGHT | 58.0000 |
| MANUFACTURER | Mercury |
| COUNTRY OF MANUFACTURE | Japan |
| HORSEPOWER | 5hp |
| SHAFT LENGTH | 20″ (Long) |
| STEERING | Tiller |
| STARTING | Manual |
| TRIM & TILT | Manual |
| FUEL DELIVERY | Carburetor |
| FUEL TANK | Internal |
| CYLINDER(S) | 1 |
| DISPLACEMENT | 123 cc (7.5 cubic inches) |
| BORE AND STROKE | 59 x 45 mm (2.32 x 1.77 inches) |
| FULL THROTTLE RPM RANGE | 4500-5500 |
| IGNITION SYSTEM | Digital CD Ignition w/Electronic Spark Advance |
| INDUCTION SCAVENGING | OHV |
| VALVES PER CYLINDER | 2 |
| FUEL TYPE | 87 Octane (up to 10% ethanol content) |
| FUEL TANK / FUEL LINE | 0.3 US Gallon (1.15 liter) |
| OIL TYPE | SAE 10W-30 (Mercury 4-Stroke Outboard Oil) |
| OIL CAPACITY | 15 fl. Oz. (450 ml) |
| LUBRICATION | Trochoid Pump |
| ALTERNATOR | 4 / 2 amp / 50 / 25 watt with Charging Cord |
| COOLING SYSTEM | Water-Cooled, Thermostatically Controlled |
| SALTWATER RATED | YES |
| GEAR RATIO | 2.15:1 |
| GEAR SHIFT | Forward-Neutral-Reverse (forward mounted shift lever) |
| PROPELLER | 6.0″ Pitch High Thrust 3-Blade Aluminum |
| INTERNAL BATTERY | No |
2018 Mercury 5 Hp 5MLHA Outboard Motor
WHAT’S IN THE BOX?
- Integral Fuel Tank (0.3 gal)
- Owner’s Manual
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Tool Kit
