Description

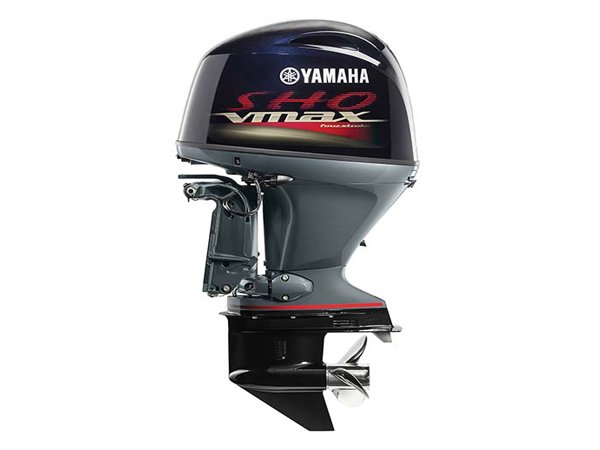

2018 Yamaha VF115 V MAX SHO 2.8L VF115LA Outboard Motor
The I-4 V MAX SHO 115 is Yamaha’s fastest 115-hp four stroke, ever, with a top speed of nearly 51 mph.* On top of its impressive speed, it features tech unheard of in its class, including a long-track intake system, free-flow exhaust and knock sensor. Still it’s 10 pounds lighter than a competitor’s two stroke.
2018 Yamaha VF115 V MAX SHO 2.8L VF115LA Outboard Motor
Convenience & Control
- EASY RIGGING: I-4 V MAX SHO® outboards feature mechanical controls for easy, convenient rigging with most bass, bay and flats boats, and are compatible with analog, 6Y5 digital or Command Link® gauges.
- EXTRA SPACE: A four stroke in-line design means there’s no need for an external oil tank. That means less weight and more storage room in the boat for tackle and gear.
- AMPLE CHARGING POWER: At 50 amps, the V MAX SHO® 175 and 150 alternators boast an 11 percent increase in charging power over the two stroke 150 HPDI®.
Power & Performance
- QUIET POWER AND PERFORMANCE: The I-4 V MAX SHO® design maximizes combustion efficiency in a way that no two stroke can, delivering clean, quiet power and performance.
- MIDRANGE POWER AND RESPONSE: The V MAX SHO® 175 and 150 feature Variable Camshaft Timing, which optimizes the angle of the intake camshaft to increase power and throttle response in the low- and mid-RPM ranges.
- FUEL EFFICIENT: In-line Four V MAX SHO® designs are up to 40% more fuel efficient than traditional carbureted two strokes.
- OPTIMUM POWER: Precision Multi-Point Electronic Fuel Injection and long-track intake system combine to maximize power and fuel efficiency across the line of In-Line Four V MAX SHO® outboards.
- POWER MANAGEMENT: An array of advanced sensors constantly provide vital atmospheric and engine conditions to the Engine Control Module (ECM), which instantly makes the precise adjustments for optimum performance.
Reliability & Durability
- ENGINE WARNING SYSTEM: This system protects the outboard with a range of functions including: overheat protection and low-oil-pressure warning (automatically reducing maximum RPM to 2000), over-rev protection, water-in-fuel detection, start-in-gear protection and shift-in prevention at open throttle.
- BETTER LUBRICATION: Wet sump pump lubrication that uses a pressurized oil delivery system through an oil pump.
- CORROSION PROTECTION: Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ electro-deposited, anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha I-4 V MAX SHO® four-stroke engines.
- UNBEATABLE RELIABILITY: The I-4 V MAX SHO® 175 and 150 feature a Cowling Drain System and Air Intake Labyrinth System to trap and drain water that enters their cowlings during normal operation.
2018 Yamaha VF115 V MAX SHO 2.8L VF115LA Outboard Motor
General Information
Manufacturer
Yamaha
Model Year
2018
Model
VF115 V MAX SHO 2.8L
Model Code
VF115LA
Color
Black / Grey
Electrical
Alternator Output
35 amp
Engine
Engine Type
Inline 4
Ignition
TCI Microcomputer
Exhaust
Through propeller
Measurements
Power
115 Horsepower
Displacement
1,832 Cubic Centimeter
Bore x Stroke
81 x 88.9 mm (3.19 x 3.5 in.)
Shaft Length
20″
Dry Weight
377 lbs
Operational
Steering
Remote mechanical controls
Fuel Type
Unleaded
Use
Fresh and Salt Water
Full Throttle RPM Range
5,300 – 6,300 rpm
Fuel Induction
EFI
Lubrication
Wet sump
Recommended oil – Yamalube® 4M
Oil capacity with filter – 3.2 l
Oil capacity without filter – 3 l
Cooling
Thermostatic control
Gear Ratio
2.15:1
Gear Shift
Forward, neutral, reverse
Trim System
Power trim and tilt
-4° through +16°
Degree of tilt – 70°
Other
Warranty
3 Year Pleasure, 3 Year Government, 1 Year Commercial
2018 Yamaha VF115 V MAX SHO 2.8L VF115LA Outboard Motor
1 X Outboard Motor
1 X Outboard Tiller Handle
1 X Fuel Tank
1 X Quick Connect Fuel Line tilt switch
1 x Teleflex SL3 Throttle control Top or side Mount ? + Free Installation Universal Cables
1 X Outboard Warranty Card from manufacturer Valid 5 Years Depending on outboard type
1 X Standart Aluminum Propeller Depending on outboard Brands , type & Horse power.
1 X Trim limiter
3 X Gall Free Oil Depending on outboard Brands Yamalube, Honda Marine Oil, Mercury Premium Oil
1 X Stainless Outboard Anti-Theft
1 X Book Owner’s Manual Guide from manufacturer
1 X Ebook Installation Guide & And how to take care of the engine properly.
3 X Cable Protection System Length 800mm
