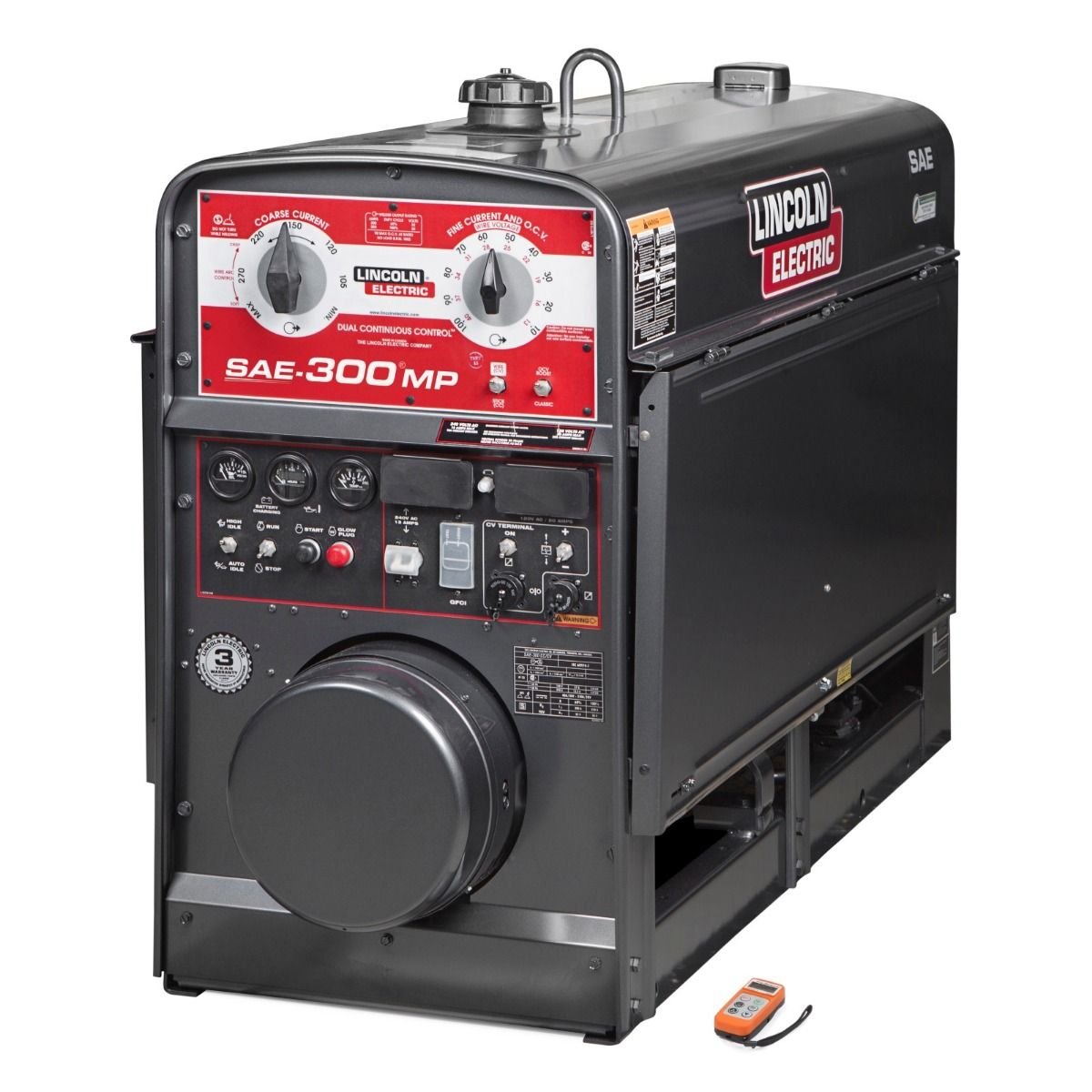

Buy LINCOLN SAE 300 MP WELDER/GENERATOR W/WIRELESS REMOTE (K4090-2) Online
The SAE 300 MP WELDER/GENERATOR (Multi Process) combines a rugged design with traditional pure DC generator technology for excellent welding performance in pipe, construction, and maintenance applications. The K4090-2 package comes with painted gray steel, a Kubota T4 diesel engine, and factory installed wireless remote.
These machines are Made-to-Order from Lincoln. Please allow 2-3 weeks for shipping.
Applications:
• Pipeline
• Construction
• Maintenance & Repair
Wireless Remote (Factory Installed)
• Weather Resistant
• 400 ft Range (unobstructed)
• Activate the Glow Plug / Choke from 1-30 Seconds
• Start or Stop the Engine
• Activate High or Low Idle
• Change the Fine Current Control
Features:
• Meets all EPA Tier 4 Requirements
• 3-Cylinder, water-cooled, 1800 RPM Kubota Diesel Engine
• Big fuel savings compared to previous engines
• Fuel gauge on control panel
• Two continuous dials on the control panel allow for a precise setting of both voltage and current for critical pipe welding applications
• Adjust the arc for a snappy “digging” arc for root and hot passes on pipe with cellulosic electrode, or for a soft “buttery” arc for pipe welding with low hydrogen electrode
• Pipeline operators will enjoy welding with the arc produced from the rotating armature/field coil system manufactured for many years by Lincoln Electric
• All copper windings enhance arc stability for a really smooth, high performance arc
• 300 Amps output @ 60% duty-cycle, welds up to 7/32″ fleetweld 5P + cellulosic and Excalibur low hydrogen electrodes.
| Brand | Lincoln |
|---|---|
| SKU | ILIN20180012 |
| MPN | LINK4090-2 |
| Mfgs MPN | K4090-2 |
| UPC | 015082829609 |
| Prop65 | Yes |
| Process | Flux Cored (FCAW), MIG, Stick, TIG |
| Max Amperage Output | 350 Amps |
| Usage | Heavy Industrial, Industrial |
| Phase | Single Phase |
| Manufacturer’s Warranty | 3 Years |
| Polarity | DC |
| Duty Cycle | 60% |
| Duty Cycle | 60% @ 300A | 100% @ 250A |
| Portability | 1432 lbs |
| Skill Level | Career Welder |
| Discontinued Product | No |
