Description
BUY MILLER TRAILBLAZER 325 KUBOTA DIESEL W/EXCEL POWER, GFCI, AND ARCREACH (907799002) ONLINE

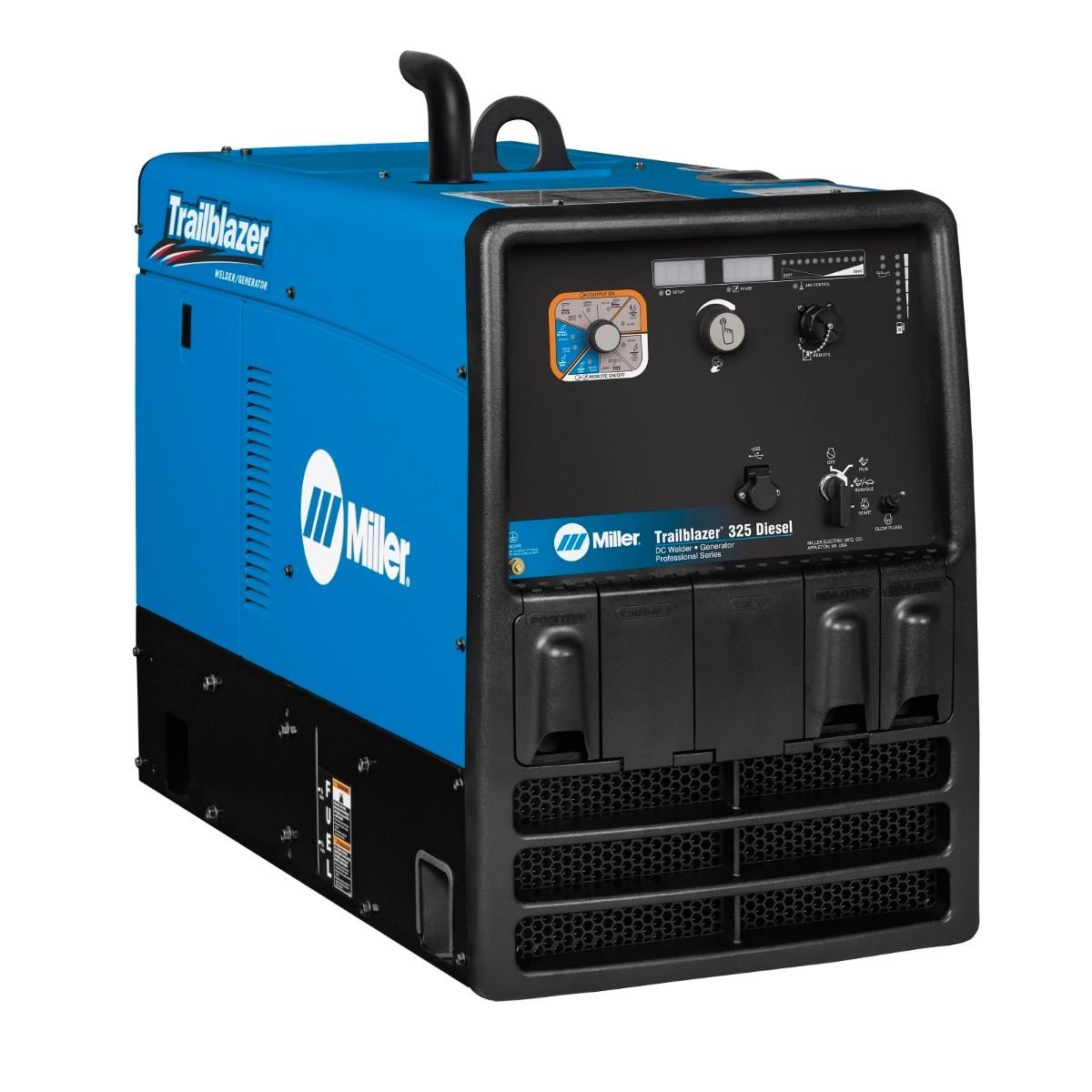

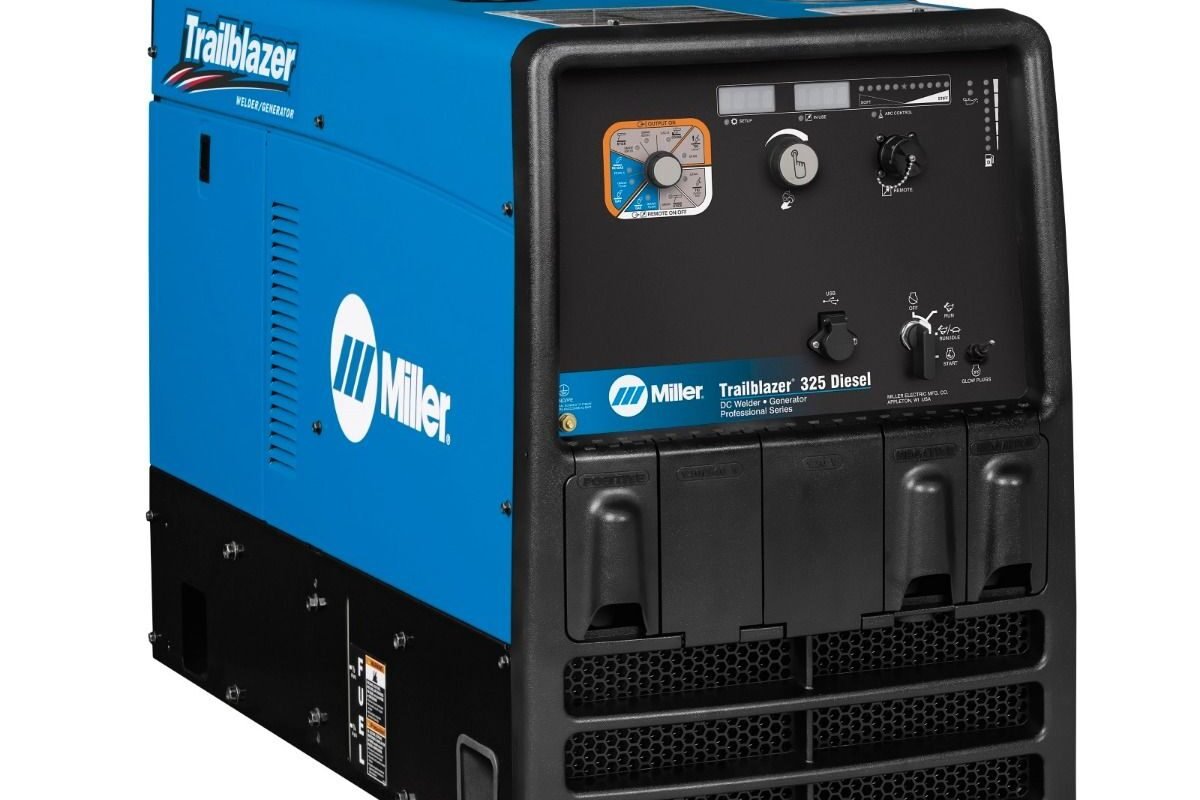

The Miller 907799002 Trailblazer 325 KUBOTA DIESEL W/EXCEL POWER engine drive delivers unbeatable arc performance with 325 amps and 12,000-watt peak output. The Trailblazers offer an exclusive “Auto-Speed” technology whereby the generator responds to weld requirements by automatically adjusting engine speed to one of four rpm levels so the engine never works harder than necessary.
Excel Power Benefits
• Full 2,400 Watts (20A) of 120-Volt Inverter Based Sine Wave Power at All Speeds
• Operate site tools like Grinders at Quiet, Fuel-Saving Speeds
• Up to 52% More Fuel Efficient
• Annual Fuel Savings of Roughly $570 over Competitive Models
Features
• Auto-Speed Technology – Matches Engine Speed to Weld Load
• Excel Power (Included) – Full 2,400 Watts of 120V Inverter Based Sine Wave Power at All Speed, Including Idle
• Arc Reach Technology (Optional) – Remote Control of the Power Source/Feeder Without a Control Cord
• More Portable – Trailblazers are up to 24 Percent Smaller and 10 Percent Lighter than Competitive Machines
• Cleaner and Stronger – 25 HP Kubota Diesel Engine and 12,000 Watts of Accu-Rated Generator Power
Quick Specs
• Processes: Stick, MIG, Flux-Cored, DC TIG, Air Carbon Arc
• Output Range: 30-325A DC Stick | 10-35V MIG | 10-325A DC TIG
• Generator Output: 12,000W Peak | 10,500W Continuous
• Sound Levels: 75 dB @ 150A Load | 81.5 dB @ 325A Load
• Dimensions: 28″ H x 20″ W x 45.4″ L
• Weight: 620 lbs
• Engine: Kubota D902 Diesel (2 Year Warranty)
• Horsepower: 24.8 @ 3,600 RPM
• Fuel Capacity: 12 Gallons
| Brand | Miller |
|---|---|
| SKU | IMIL20180051 |
| MPN | MIL907799002 |
| Mfgs MPN | 907799002 |
| UPC | 715959678476 |
| Prop65 | Yes |
| Process | Air Carbon Arc Cutting and Gouging, Flux Cored (FCAW), MIG, Stick, TIG |
| Max Amperage Output | 325 Amps |
| Usage | Heavy Industrial, Industrial |
| Phase | Single Phase |
| Manufacturer’s Warranty | 3 Years |
| Polarity | DC |
| Duty Cycle | 100% |
| Duty Cycle | 100% @ 325 Amps |
| Portability | 620 lbs |
| Skill Level | Career Welder |
| Discontinued Product | No |
