Description
Product Summary
502, Long Block Crate Engine Type, Carburetor Included

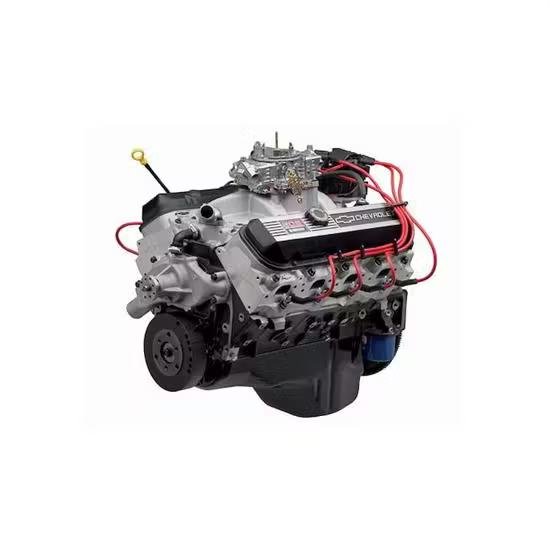

- Chevrolet Performance Parts ZZ502/502 Deluxe Big Block Crate Engine
- High-flow aluminum oval-port cylinder heads
- 2.25/1.88-inch valves and a hydraulic roller camshaft designed to support low-rpm torque production
- Topping 500 lb.-ft. mark by approximately 2,500 rpm
- Proven performance suitable for the street or strip
Details
- Chevrolet Performance Parts ZZ502/502 Deluxe Big Block Crate Engine
- High-flow aluminum oval-port cylinder heads
- 2.25/1.88-inch valves and a hydraulic roller camshaft designed to support low-rpm torque production
- Topping 500 lb.-ft. mark by approximately 2,500 rpm
- Proven performance suitable for the street or strip
ZZ502-502 Deluxe Tech Specs
Part Number: 19331579
Displacement (cu. in.): 502
Bore x Stroke (in.): 4.470 x 4.000
Block: Cast-iron with four-bolt main caps
Crankshaft: Forged steel
Connecting Rods: Forged steel, shot peened
Pistons: Forged aluminum
Camshaft Type: Hydraulic roller
Camshaft Lift (in.): .527 intake / .544 exhaust
Camshaft Duration (@.050 in.): 224° intake / 234° exhaust
Cylinder Heads: Aluminum oval port; 110-cc chambers
Valve Size (in.): 2.250 intake / 1.880 exhaust; stainless steel
Compression Ratio: 9.6:1
Rocker Arms: Stamped steel
Rocker Arm Ratio: 1.7:1
Distributor: HEI type
Carburetor: 870-cfm
Water Pump: Aluminum, short-style
Spark Plugs and Wires: Included
Starter: Included
Flexplate: 14″
Recommended Fuel: Premium Pump
Ignition Timing: 32° Total @ 4,000 rpm
Maximum Recommended rpm: 5800
Balanced: External
Rebates
$500/$750/$1000 Chevrolet Performance Rebate Visa®
Purchase a Chevrolet Performance Crate Powertrain system between January 1, 2024 and December 31, 2024 to get a Visa Prepaid Card. Must be postmarked by January 31, 2025. In order to receive the mail-in rebate debit card, qualifying purchases must satisfy the rebate requirements as outlined on this rebate application. Failure to meet the mail-in rebate requirements will disqualify your rebate. Limit one (1) rebate per service performed per service date and vehicle and cannot be assigned or transferred. This offer is void where taxed, restricted or prohibited by law.
KEY SPECS |
|
|---|---|
| MFG. Part # | 19331579 |
| Brand | Chevrolet Performance Parts |
| Crate Engine Type | Long Block |
| Engine Displacement | 502 cu. in. |
| Compression Ratio | 9.6:1 |
| Camshaft Type | Hydraulic Roller Tappet |
| Cylinder Head Material | Aluminum |
| Carburetor Included | Yes |
| Intake Manifold Included | Yes |
| Distributor Included | Yes |
| Valve Covers Included | Yes |
| Engine Balance | External |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | No |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | Yes |
| Harmonic Balancer Included | Yes |
| Flexplate Included | Yes |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Computer Included | No |
| Wiring Harness Included | No |
GENERAL |
|
| Assembled | Yes |
| Cylinder Head Style | Assembled |
| Sold in Quantity | Each |
