Description
Overview
Brand: FTI Performance
Manufacturer’s Part Number: FTK7R4-3E3
Part Type: Automatic Transmissions
Product Line: FTI Performance 700R4 Level 3 Transmission Packages
Summit Racing Part Number: FTI-FTK7R4-3E3
UPC: 887753817556
Number of Gears: 4
Bellhousing Bolt Pattern Manufacturer: Chevy
Transmission Shift Pattern: Forward
Valve Body Style: Automatic
Transmission Advertised Horsepower Rating: 600
Torque Converter Included: Yes
Flexplate Included: No
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: No
Advertised Flash Stall Rating: 3,200 rpm
Trans-Brake Included: No
Lockup Compatible: Yes
Transmission Pan Style: Stock
Transmission Pan Material: Steel
Transmission Pan Finish: Natural
Tailshaft Length (in.): 7.500 in.
Yoke Style: Slip-on
Input Spline Quantity: 30
Input Shaft Material: Hardened steel
First Gear Ratio (Automatic Transmissions): 3.06
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Case Finish: Natural
Transmission Shield Built In: No
Flexplate Shield Built In: No
Fluid Fill Location: Case
Transmission Fluid Included: Yes
Transmission Fluid Quantity Included: 12 qt.
Dipstick Included: Yes
Remanufactured: Yes
Quantity: Sold as a kit.

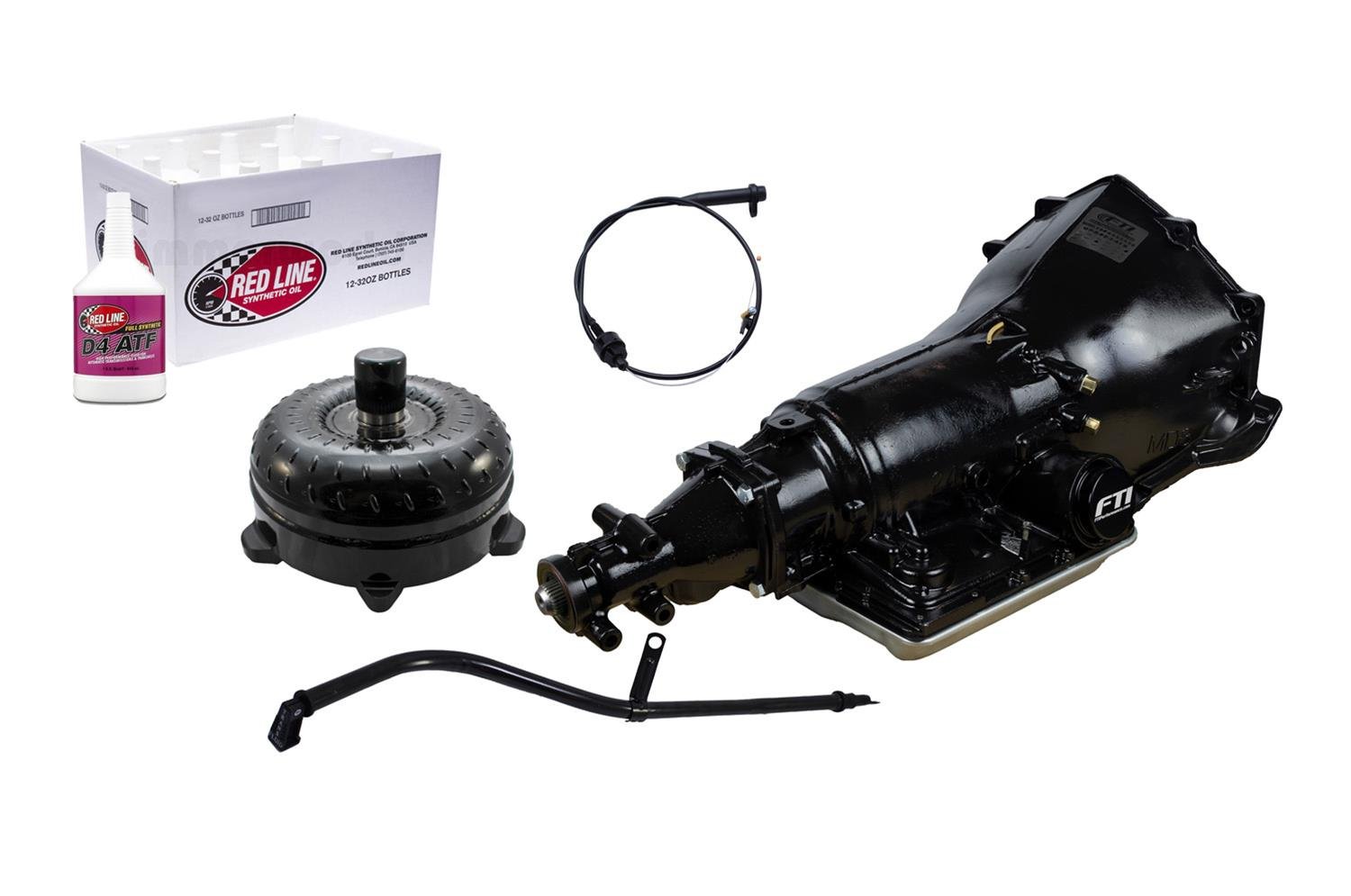

Notes: Designed for use with Edelbrock carburetor. Includes TV cable, filler tube and TV correction for carbureted intake manifolds. Includes 3,200 stall speed rating RPM range torque converter.
