Description
Mazda RX-7 Twin Turbo 13B-REW Engine For Sale
JDM Mazda RX-7 FD 13B-REW Engine For Sale.The ergonomic and robust 13B-REW motor is the twin-turbo version of the 13B engine designed to power the third-generation RX-7 launched in late 1991. Each rotor on 13B-REW has a single combustion chamber volume of 654cc. With two rotors, the total displacement was 1308cc. Perfect fit for a Mazda swap or replacement project.
Here you get a clean, top-performance Mazda RX-7 twin-turbo, 13b-rew engine for sale, with a little over 55000km covered.
Parts Included With The JDM Unit
- Engine Head & Block
- Wiring harness
- Intake Manifold
- Exhaust Manifold
- ECU
- Injectors
- A/C Compressor
- Alternator
- 5 Speed MT Trans
- Starter
- Clutch
The Mazda RX-7 Twin Turbo 13B-REW engine is a renowned rotary engine known for its performance. Here are some specifications for the 13B-REW engine commonly found in the third-generation (FD) Mazda RX-7:
- Engine Type: Rotary engine
- Configuration: Twin-turbocharged
- Displacement: 1.3 liters (2 x 654 cc rotors)
- Power Output: Approximately 255 horsepower (factory rating for stock engines; actual power may vary based on modifications and tuning)
- Torque: Approximately 217 lb-ft
- Compression Ratio: 9.0:1
- Turbochargers: Sequential twin-turbo setup (one primary turbo and one secondary turbo)
- Fuel System: Multi-port fuel injection
- Redline: Around 8,000 to 8,500 RPM
- Rotary Configuration: 2-rotor Wankel engine (13B), twin-rotor with two sequential turbochargers (RE, for rotary engine)

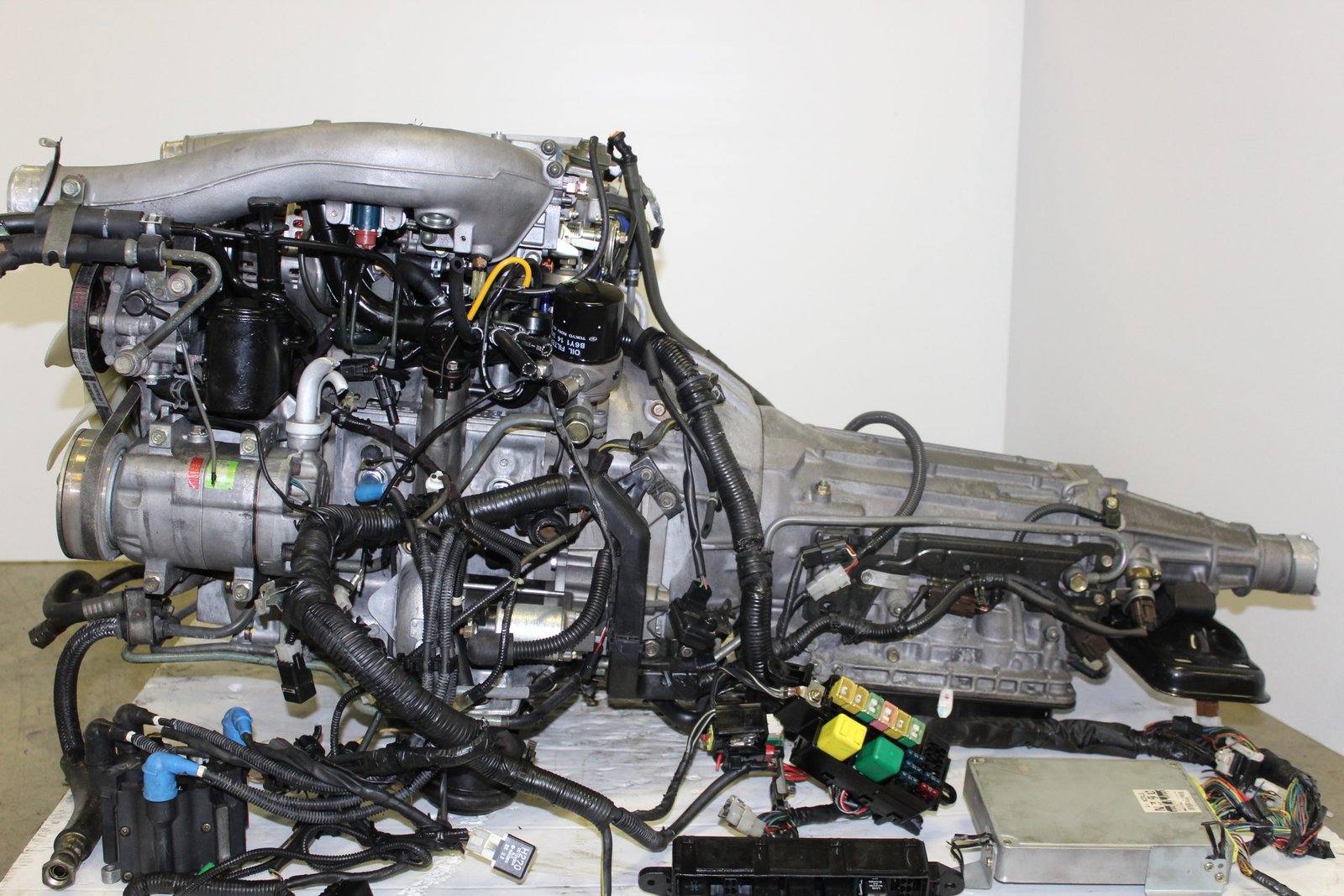

*Every other part and accessory visible in the image. What you see is exactly what you get!
