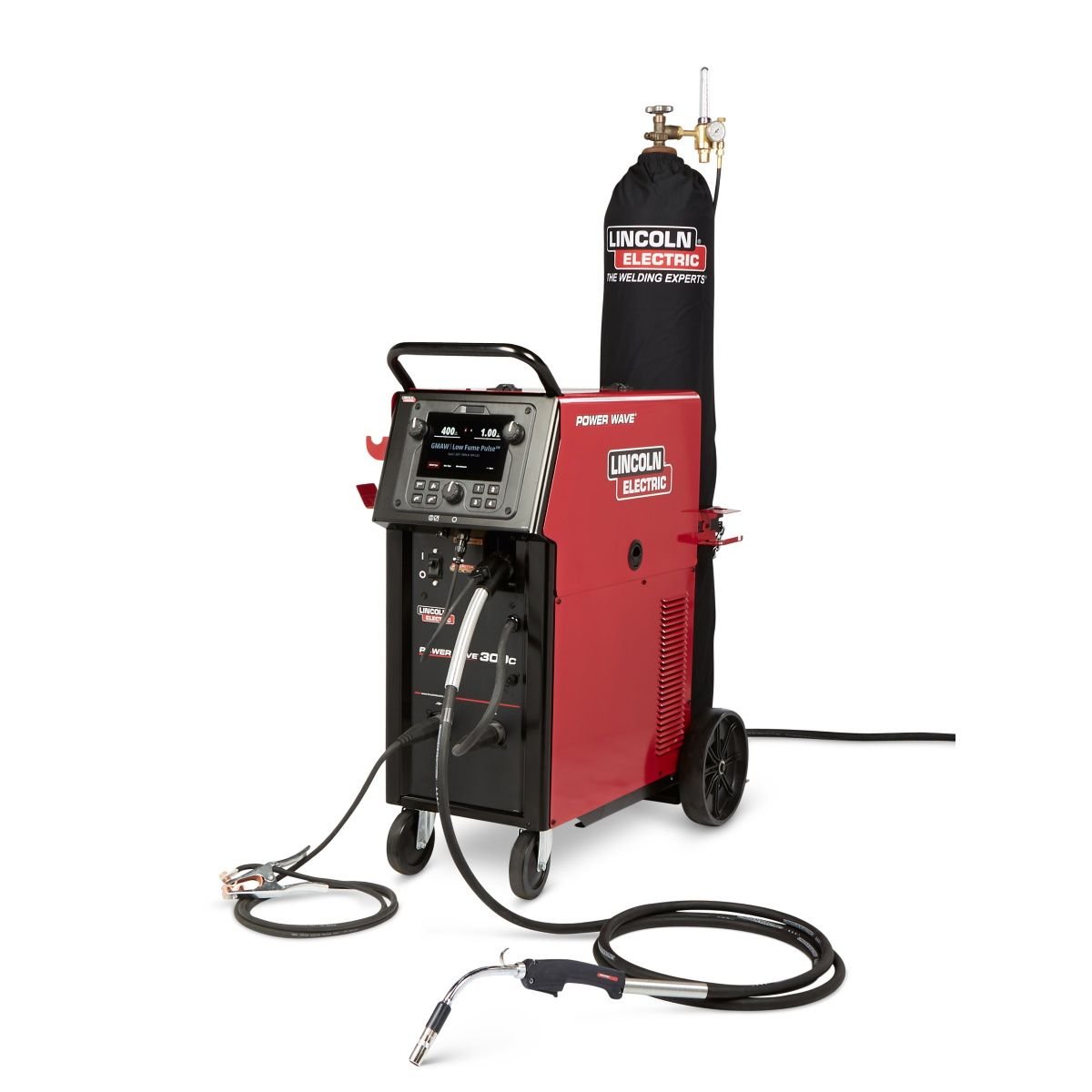

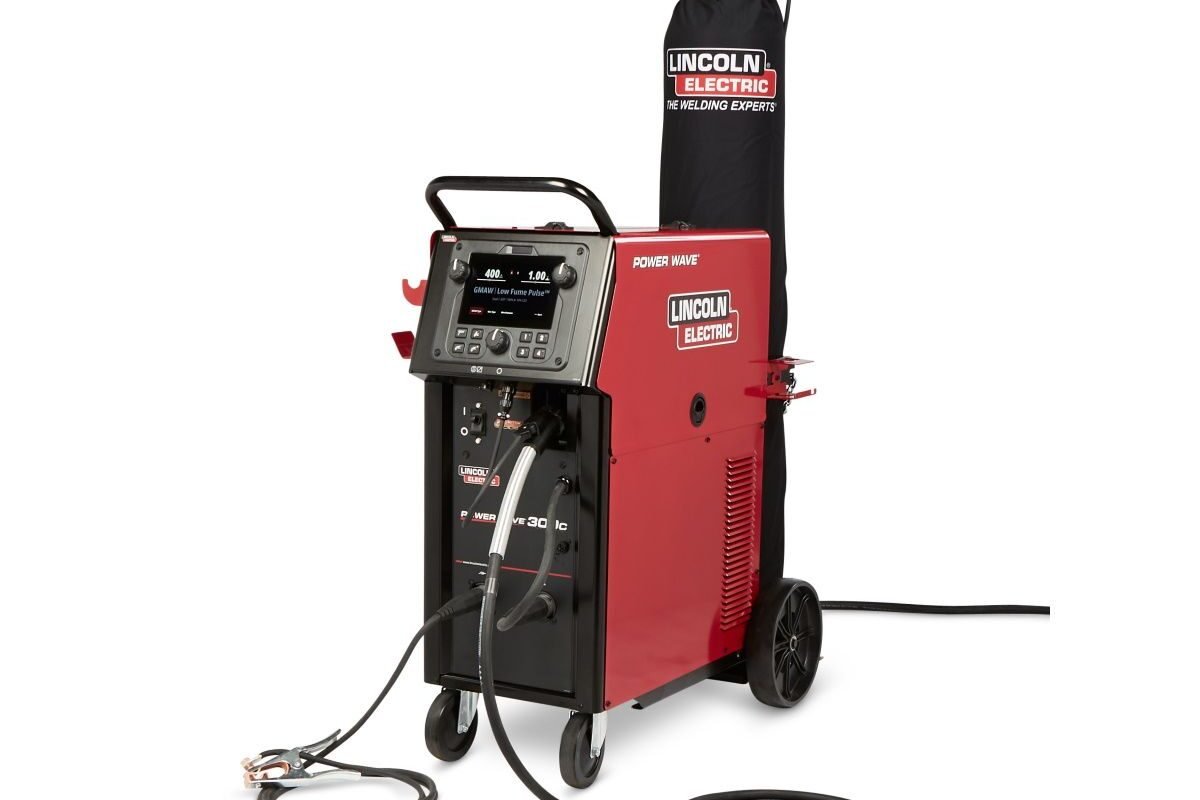

LINCOLN POWER WAVE 300C ADVANCED AC/DC MULTI PROCESS WELDER (K4488-1)

Description

LINCOLN POWER WAVE 300C ADVANCED AC/DC MULTI PROCESS WELDER (K4488-1)

The Lincoln Power Wave 300C (advanced model) delivers the ultimate 300 Amp “do everything” welder. Packed with all the arc performance and technology you expect from a Power Wave system, this compact machine takes the industrial all-in-one class of welders to the next level. This is an ideal welder for aluminum, stainless, and nickel materials where arc performance is critical. This welder can be used on single or three phase power and carries a 100 percent duty cycle at 300 amp output.

Processes
Stick, High Frequency and AC/DC Tig Modes, MIG, Pulsed MIG, Flux-Cored, Stick

Features
PowerConnect Technology
Automatically adjusts to input power from 200-600V, 50 or 60 Hz, single phase or three phase. Welding output remains constant throughout the entire input voltage range.

CheckPoint
A cloud-based data collection tool allows customers to view and analyze welding data on almost any device – desktop, laptop, iPhone, or iPad. Track equipment usage, store weld data, configure fault limits and more.

Integrated TIG torch and Spool Gun Solenoid
Makes for fast changeovers to TIG welding or spool gun operation.

Quick Specs
• Input Voltage: 3Ph – 50/60 HZ – 208-575V | 1Ph – 50/60 HZ – 208-230
• Output Range: 5-350 Amps
• Wire Feed Speed: 50-700 ipm
• Duty Cycle: 40% @ 350A | 100% @ 300A
• Weight: 226 lbs
• Dimensions: 40″H x 21″W x 40″L

Includes
• Power Source
• 15 Ft Magnum Pro Curve 300 Ready-Pak MIG Gun
• 10 Ft Work Lead and Clamp
• Harris Flowmeter/Regulator and Hose Kit
• .035-.045 V-Groove Drive Roll Kit
• 10 Ft Input Cord (No Plug)
