Description

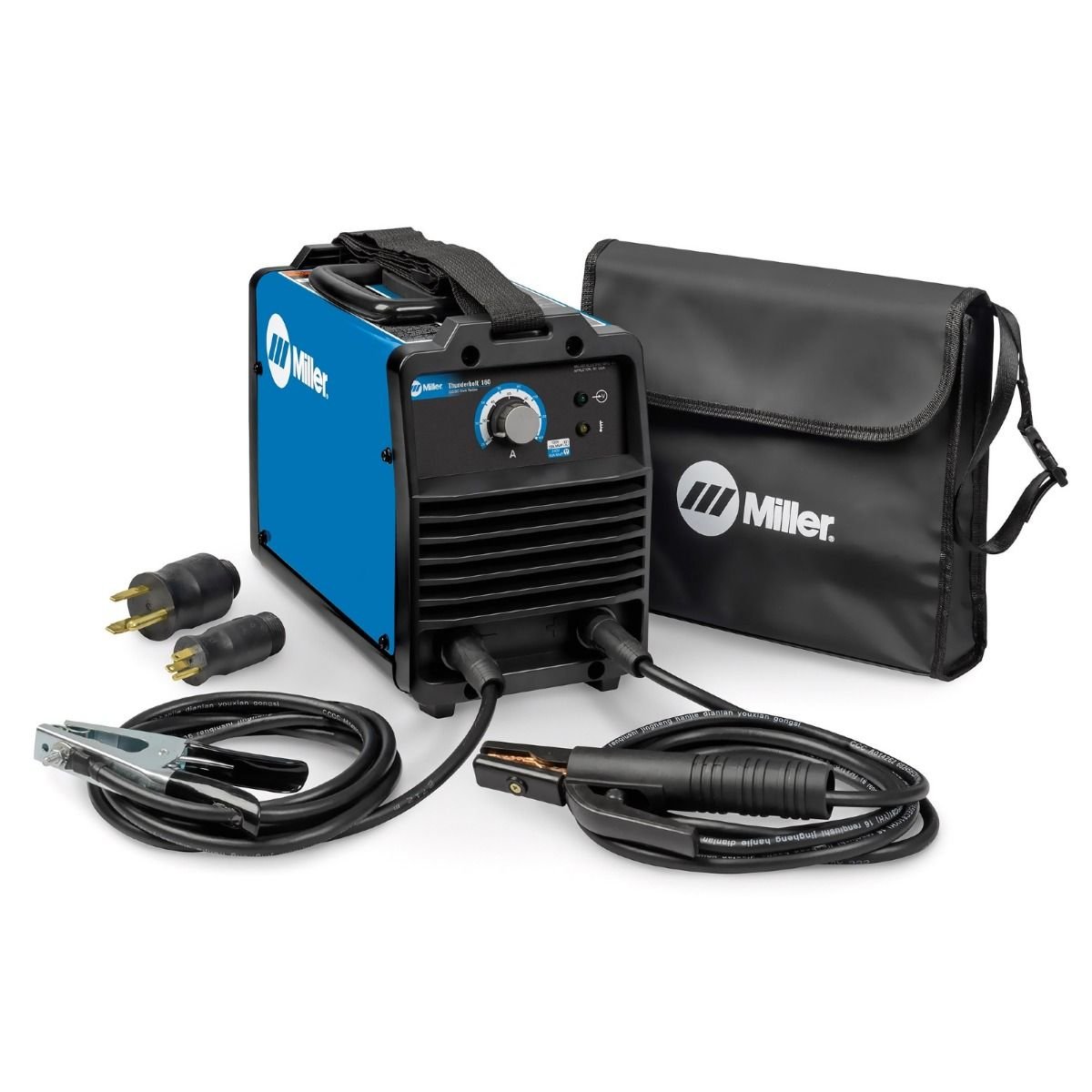

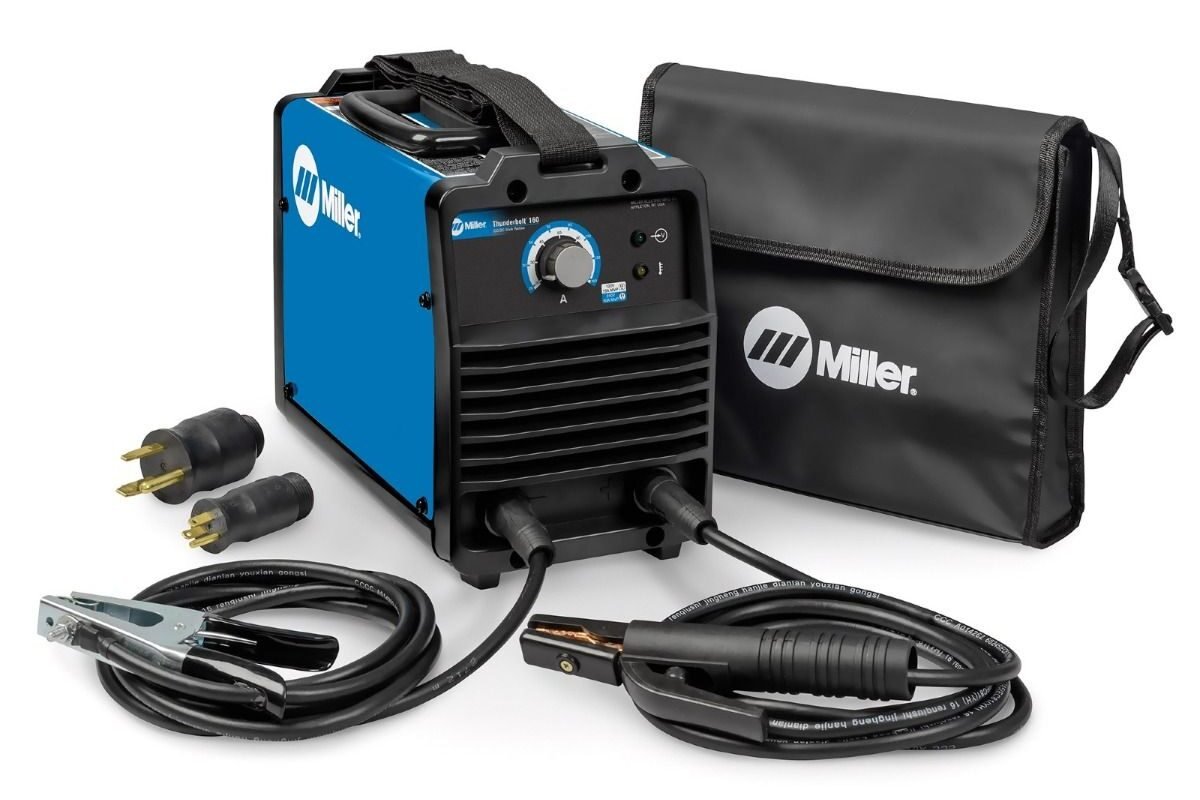

MILLER THUNDERBOLT 160 DC STICK WELDER (907721)
The Miller Thunderbolt 160 (907721) weighs only 15 pounds, comes with 120/240 mutli-voltage plugs, and welds up to 5/16″ mild steel. Miller got it right this time – this welder weighs nearly 100 pounds less than its predecessor and only draws 21 amps on 120 volt usage. This welder features Miller’s Hot Start technology which provides easy, quick and reliable starts.
Quick Specs
• Process: DC Stick Only
• Input Power: 1-Phase
• Max Open Circuit Voltage: 91V
• Amperage Range: 20-80A on 120V | 20-160A on 240V
• Mild Steel Thickness: 1/16 – 1/8 on 120V | 1/16 – 5/32 on 240V
Includes
• 10ft No. 4 electrode cable with stinger
• 10ft work cable with clamp
• 6.5ft power cord with 120/240 MVP plugs
• Cable pouch
| Brand | Miller |
|---|---|
| SKU | IMIL20170050 |
| MPN | MIL907721 |
| Mfgs MPN | 907721 |
| UPC | 715959642132 |
| Prop65 | Yes |
| Max Amperage Output | 160 Amps |
| Phase | Single Phase |
| Manufacturer’s Warranty | 3 Years |
| Polarity | DC |
| Duty Cycle | 20% |
| Duty Cycle | 20% @ 65A (120V), 30% @ 160A (240V) |
| Portability | 15 lbs |
| Discontinued Product | No |
