Description

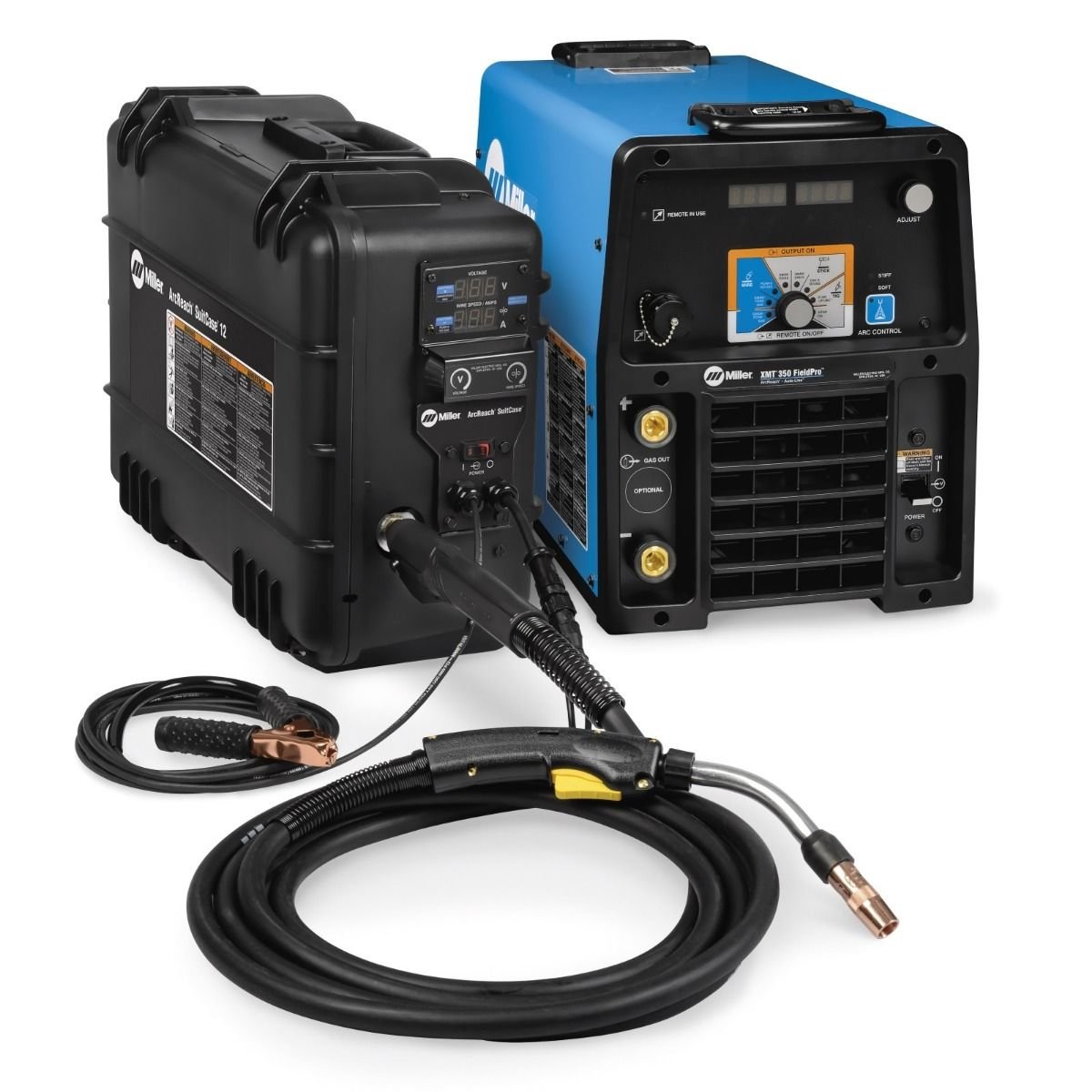

MILLER XMT 350 FIELDPRO ARCREACH W/SUITCASE PKG (951734)
The XMT 350 FieldPro with Suitcase (951734) offers portability, auto-line technology, and excellent arc performance. These welders feature Miller’s ArcReach technology which allows full control at the feeder rather than making a trip back to the power source to change output settings.
This particular model XMT comes equipped with Tweco Style Connectors.
XMT Features
• Auto-Line voltage hookup (208-575V)
• 1 or 3-Phase Capable
• Adaptive Hot Start
• Infinite Arc Control
• Lift-Arc
• Fan-on-Demand
• Lightweight, Aerospace-Grade Aluminum Case
• Large, Dual Digital Meters
• Process Selector Switch
ArcReach Benefits
• Cable Length Compensation (CLC)
• No Expensive Control Cords
• Improved Jobsite Safety
• Maximize Fleet Compatibility with ArcReach Power Sources
• More Operator Control
ArcReach Suitcase Feeder Features
• Front Panel Trigger Hold, Wire Jog, Gas Purge
• Fully Adjust Parameters at Feeder
• Flux-Cored Capable
• Impact Resistant Case
The Auto Remote Sense enables the unit to automatically use remote control if connected to remote control receptacle.
XMT Quick Specs
• Voltage Range: 10-38V
• Amperage Range: 5-425A
• Duty Cycle: 60% @ 350A 3-Phase | 60% @ 300A 1-Phase
• Weight: 93 lbs
• Dims: 17″ H x 12.5″ W x 24″ D
Feeder Quick Specs
• Wire Feed Speed: 50-780 ipm
• Duty Cycle: 60% @ 425A
• Wire Diameter: .023 – .052 (Solid Wire) | .030 – 5/64 (Flux-Cored)
• Dimensions: 15.5″H x 9″W x 21″D
• Net Weight: 35 lbs
• Drive Rolls Included: .045 – 1/16 V-Knurled
| Brand | Miller |
|---|---|
| SKU | IMIL20180066 |
| MPN | MIL951734 |
| Mfgs MPN | 951734 |
| UPC | 715959657761 |
| Prop65 | Yes |
| Material | Mild Steel, Stainless Steel |
| Process | Air Carbon Arc Cutting and Gouging, Flux Cored (FCAW), MIG, Stick, TIG |
| Max Amperage Output | 425 Amps |
| Usage | Industrial |
| Phase | Both |
| Manufacturer’s Warranty | 3 Years |
| Polarity | DC |
| Duty Cycle | 60% |
| Duty Cycle | 60% @ 350A 3-Phase | 60% @ 300A 1-Phase |
| Portability | 93lbs XMT | 35lbs Suitcase |
| Skill Level | Career Welder |
| Input Voltage | 208, 220, 230, 240, 380, 460, 575 |
| Discontinued Product | No |
