Description
BUY MILLER MULTI MATIC 235 MULTIPROCESS WELDER W/RUNNING GEAR (951846) ONLINE

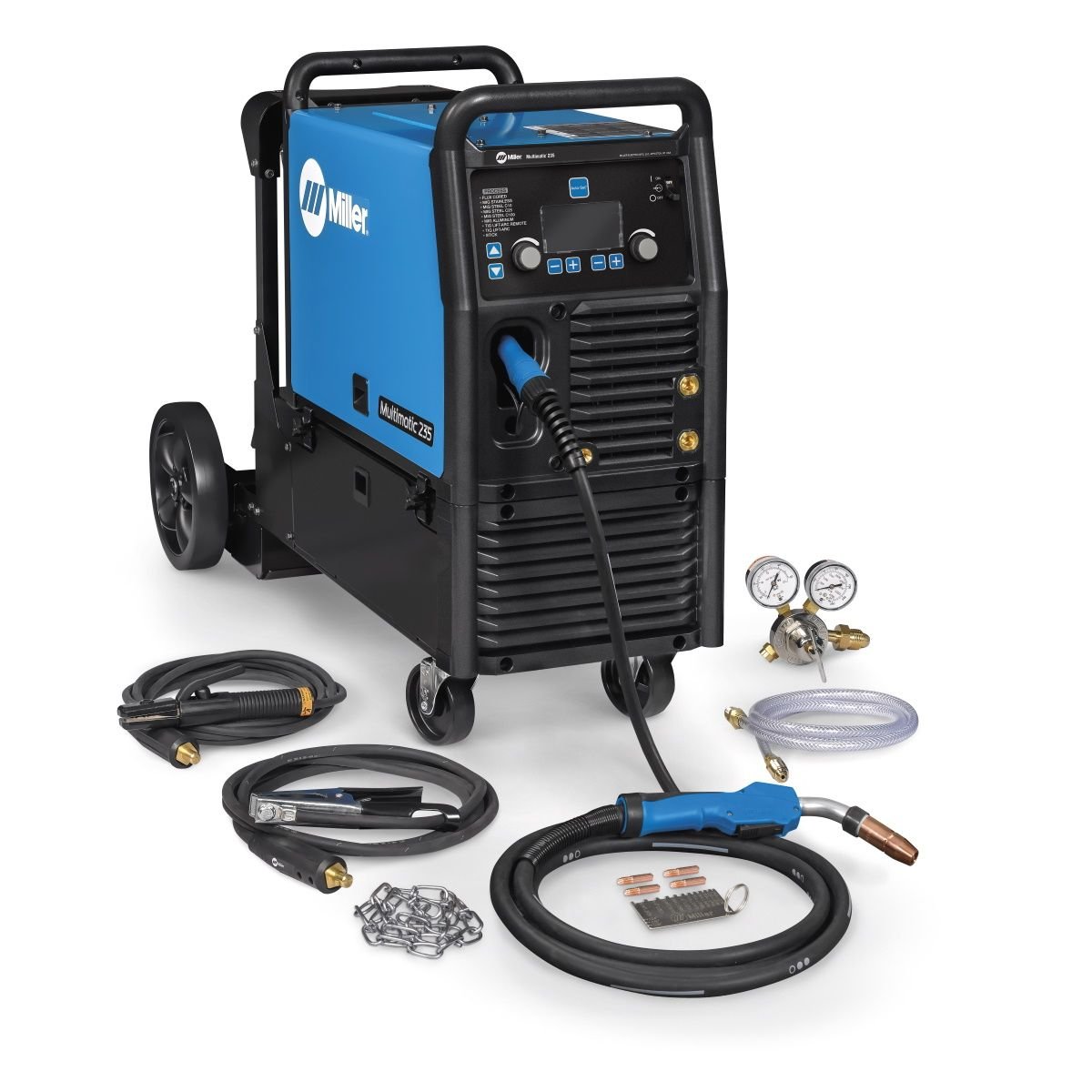

The Miller Multimeric MULTIMATIC 235 MULTIPROCESS WELDER, Stick and Pulsed DC Tig Welder (951846) is designed for light manufacturing and fabrication users who want a smaller, versatile workhorse that is easy to set up and easy to use. This 235-amp inverter welder can be integrated into running gear for easy movement around the work area or it can be quickly disconnected from the running gear enabling portability and making it easier to integrate into a work cell or work in confined spaces. MULTIMATIC 235 MULTIPROCESS WELDER.
• Dimensions: MULTI MATIC 235 MULTIPROCESS WELDER – 19.24″ H x 13.75″ W x 24.25″ D | With Cart – 32″ H x 13.75″ W x 45″ D
WHAT’S INCLUDED
• Power source with 7 ft. power cord (No Plug Included)
• Running Gear/Cylinder Rack (301449)
• 15 ft. (4.5 m) 250-amp MDX MIG Gun with .030-.035 Liner (Accepts Miller MDX Consumables
• 10 ft. (3 m) work cable with Electrode Holder and 50mm Dinse Connector
• 10 ft. (3m) Work Cable with clamp and 50mm Dinse-style connector
• Flow gauge regulator and gas hose for argon or AR/CO2 mix
• Extra Contact tips
• .030/.035 in. reversible drive rolls
• Material Thickness Gauge
| Brand | Miller |
|---|---|
| SKU | IMIL20200027 |
| MPN | MIL951846 |
| Mfgs MPN | 951846 |
| UPC | 715959684200 |
| Prop65 | Yes |
| Material | Aluminum, Mild Steel, Stainless Steel |
| Process | Flux Cored (FCAW), MIG, TIG |
| Max Amperage Output | 235 Amps |
| Usage | Home/Hobby, Industrial, Light Industrial |
| Phase | Single Phase |
| Manufacturer’s Warranty | 3 Years |
| Polarity | DC |
| Duty Cycle | 60% |
| Duty Cycle | 60% @ 170A |
| Portability | 127 lbs |
| Skill Level | Beginner, Weekend Warrior, Career Welder |
| Input Voltage | 208, 220, 230, 240 |
| Discontinued Product | No |
