Description

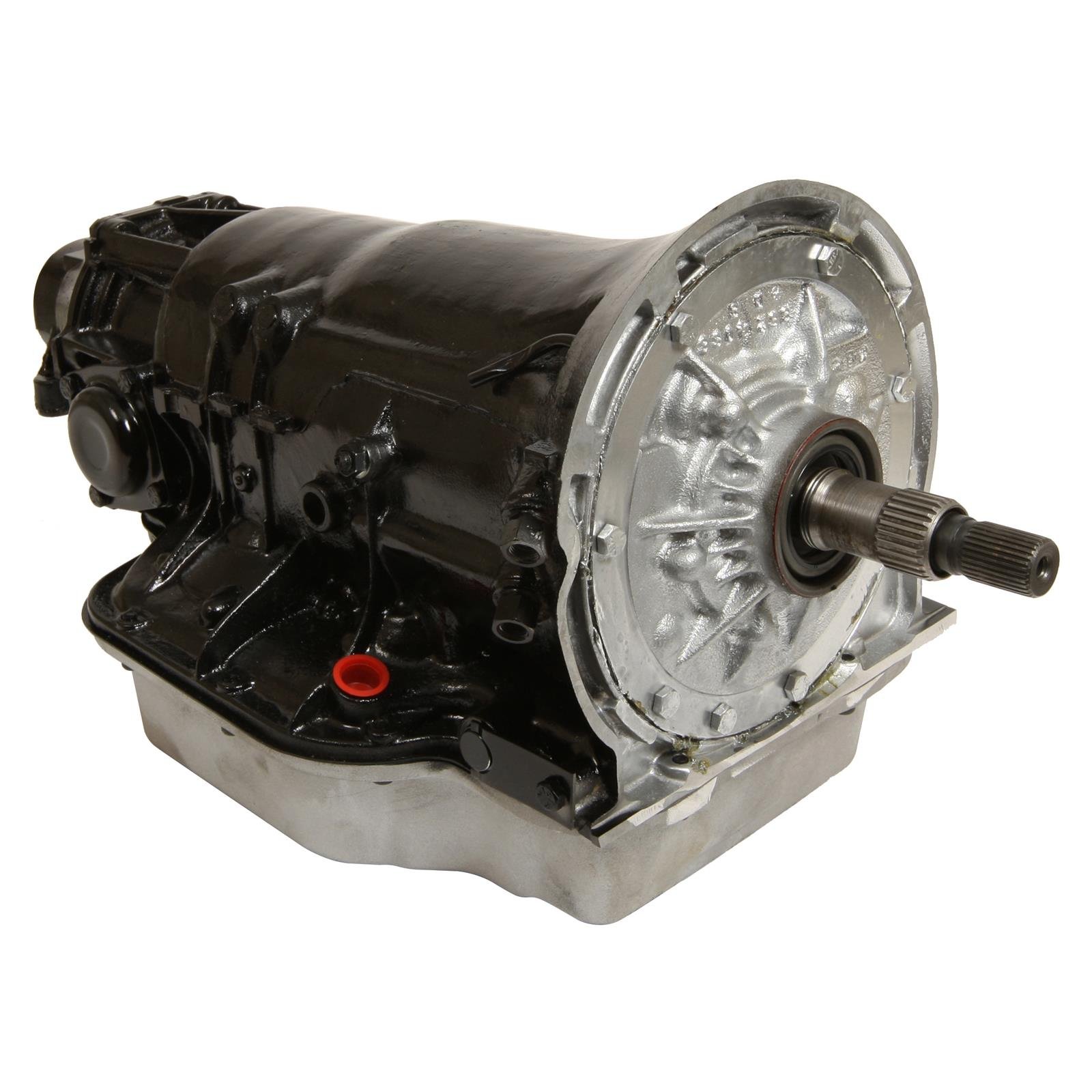

Overview
Brand: Summit Racing
Manufacturer’s Part Number: SUM-700382
Part Type: Automatic Transmissions
Product Line: Summit Racing™ Performance Transmissions
Summit Racing Part Number: SUM-700382
UPC: 190861219885
Number of Gears: 3
Bellhousing Bolt Pattern Manufacturer: Chevy
Transmission Shift Pattern: Reverse
Valve Body Style: Full manual
Transmission Advertised Horsepower Rating: 1,200
Torque Converter Included: No
Flexplate Included: No
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: No
Trans-Brake Included: Yes
Lockup Compatible: No
Transmission Pan Style: Deep
Transmission Pan Material: Aluminum
Transmission Pan Finish: Natural
Tailshaft Length (in.): 4.000 in.
Yoke Style: Slip-on
Input Spline Quantity: 30
Input Shaft Material: 300M
Input Shaft Style: TH350/400
First Gear Ratio (Automatic Transmissions): 2.48
Clutch Hub: Billet Steel
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Case Finish: Black
Transmission Shield Built In: No
Flexplate Shield Built In: No
Fluid Fill Location: Case
Transmission Fluid Included: No
Dipstick Included: No
Remanufactured: Yes
Quantity: Sold individually.
Notes: Features a billet aluminum internal solenoid transbrake, billet 6061 coated aluminum drum, 36 element Pro-Mod sprag, high performance clutches and steels, and a billet forward clutch hub. Will accept any aftermarket bellhousing that bolts to the front pump.
