Description

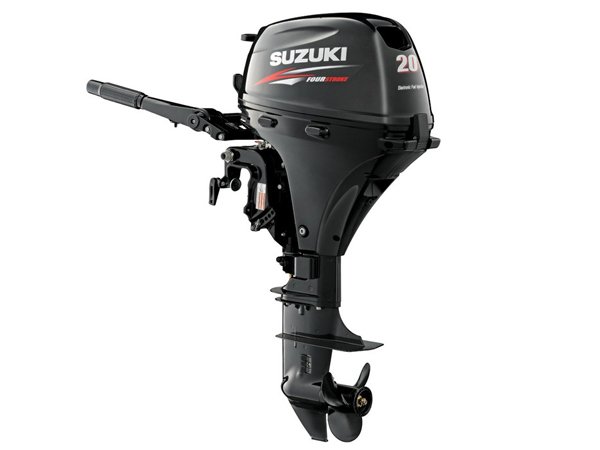

Suzuki 20 HP DF20AES2 Outboard Motor
The convenience of a push button start outboard motor combined with the powerful, yet quiet Suzuki marine engineering makes the Suzuki 20 HP outboard motor model # DF20AES2 the affordable and perfect choice for your larger size skiffs, jon boats and inflatable boats. Equipped with a 15 inch shaft and tiller steering, the Suzuki 20 HP is the quietest engine in the 20 HP class and comes standard with a 3.1 gallon fuel tank and fuel line, aluminum prop, tool kit and Suzuki’s factory warranty.
Suzuki 20 HP DF20AES2 Outboard Motor
- Electronic Fuel Injection (EFI)
- Sleek, Compact, Lightweight Design
- Lightest Outboard in 20hp 4-stroke Class
- Saltwater Rated
- Fresh Water Flushing Port
- Multi-Layer Corrosion Protection
- Electric Start + 12V Alternator System
- Thru-Cowling Manual Back-Up Starting
- Forward-Mounted Gear Shift Lever
- Twist-Grip Throttle with Tension Control
- Quiet Through-the-Prop Exhaust
- Start-in-Gear Lockout Protection
- Proven Automotive Style Oil Pump
- Shallow Water Drive
- 5 Trim Positions w/Tilt Lock Pin
- Low Oil Pressure Warning System
- Over Heat Warning System
- Over-Rev Limiter Protection
- Steering Friction Tension Control
- Integrated Carrying Handle
- Emergency Lanyard Stop Switch
- 3.1 US Gallon Fuel Tank / Fuel Line
- 3-Blade Aluminum Propeller
- 3-Star Ultra-Low Emission Rating
- Suzuki’s Lean Burn Control System
- Up to 17% more fuel efficient over
some competitor’s 4-strokes - Suzuki 3-Year Warranty
Suzuki 20 HP DF20AES2 Outboard Motor
| Model | DF20AES2 |
| Model Year | No |
| SKU | DF20AES2-17 |
| Weight | 106.0000 |
| Manufacturer | Suzuki |
| Country of Manufacture | Thailand |
| Horsepower | 20hp |
| Shaft Length | 15″ (Short) |
| Steering | Tiller |
| Starting | Electric |
| Trim & Tilt | Manual |
| Fuel Delivery | EFI |
| Fuel Tank | External |
| Cylinder(s) | 2 |
| Displacement | 327 cc (20.0 cubic inches) |
| Bore and Stroke | 60.4 x 57 mm (2.38 x 2.24 inches) |
| Full Throttle RPM Range | 5300-6300 RPM |
| Ignition System | Digital CDI |
| Induction Scavenging | SOHC |
| Valves per Cylinder | 2 |
| Fuel Type | Unleaded Gasoline (87 octane) |
| Fuel Tank / Fuel Line | INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line |
| Oil Type | 33.8 fl oz. (1000 mL) |
| Oil Capacity | 33.8 fl oz. (1000 mL) |
| Lubrication | Wet Sump; Trochoid Type Cam-Driven Oil Pump |
| Alternator | 12V 145W 10A |
| Cooling System | Water-Cooled |
| Saltwater Rated | YES |
| Gear Ratio | 2.08:1 |
| Gear Shift | Forward-Neutral-Reverse (front-mounted lever) |
| Propeller | 3-Blade Aluminum 9.25″ Dia x 10″ Pitch |
| Internal Battery | No |
Suzuki 20 HP DF20AES2 Outboard Motor
What’s in the box?
- 3.1 gal. Fuel Tank
- Fuel Line
- Owner’s Manual
- Aluminum Propeller
- Tool Kit
- Suzuki 3-Yr Warranty
