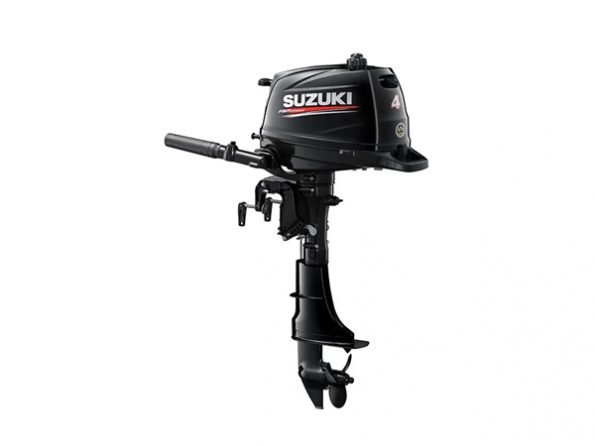

Description
This model comes equipped with the Suzuki 3-year warranty.
- Compact and Lightweight Design
- 3 Way Storage: Stbd, Port, or Front
- Saltwater Rated
- Multi-Layer Corrosion Protection
- Quiet Below-the-Water Exhaust
- Fold-Down Tiller Handle
- Rubber Mount Bracket System
- Twist-Grip Throttle with Tensioner
- Large Carrying Handle
- Large Gear Shift Lever
- Digital CDI Ignition for Quick Starting
- 3-Star Ultra-Low Emission Rating
- Shallow Water Drive (2 positions)
- 5 Trim Positions w/Tilt Lock Pin
- Over-Rev Limiter Protection
- Throttle Tension Control
- Steering Friction Tension Control
- 90° Left / Right Turning for Tight Spots
- Emergency Lanyard Stop Switch
- Built-in .26 Gal. Fuel Tank (45 min. @ WOT)
- 3-Blade Aluminum Propeller
- Suzuki 3-Year Warranty
| MODEL | DF4AS2 |
|---|---|
| SKU | DF4AS2-20 |
| WEIGHT | 52.0 lb |
| MANUFACTURER | Suzuki |
| COUNTRY OF MANUFACTURE | Thailand |
| HORSEPOWER | 4hp |
| SHAFT LENGTH | 15″ (Short) |
| STEERING | Tiller |
| STARTING | Manual |
| TRIM & TILT | Manual |
| FUEL DELIVERY | Carburetor |
| FUEL TANK | Internal |
| CYLINDER(S) | 1 |
| DISPLACEMENT | 138 cc (8.4 cubic inches) |
| BORE AND STROKE | 2.38 x 1.89 inches |
| FULL THROTTLE RPM RANGE | 4000-5000 RPM |
| IGNITION SYSTEM | Digital Capacitor Discharge Ignition System |
| INDUCTION SCAVENGING | OHV |
| VALVES PER CYLINDER | 2 |
| FUEL TYPE | Unleaded Gasoline (87 octane) |
| FUEL TANK / FUEL LINE | .26 US Gallon Integral Fuel Tank |
| OIL TYPE | SAE 10W-30 or SAE 10W-40 |
| OIL CAPACITY | 24 fl oz. (700 mL) |
| LUBRICATION | Wet Sump |
| ALTERNATOR | Optional 12V 5A (installation required) |
| COOLING SYSTEM | Water-Cooled |
| SALTWATER RATED | Yes |
| GEAR RATIO | 1.92:1 |
| GEAR SHIFT | Forward-Neutral-Reverse (starboard side lever) |
| PROPELLER | 3-Blade Aluminum 7.5″ Dia. x 6.5″ Pitch |
