Description
Product Summary
-
LS3, Long Block Crate Engine Type, Oil Pan Included
Details

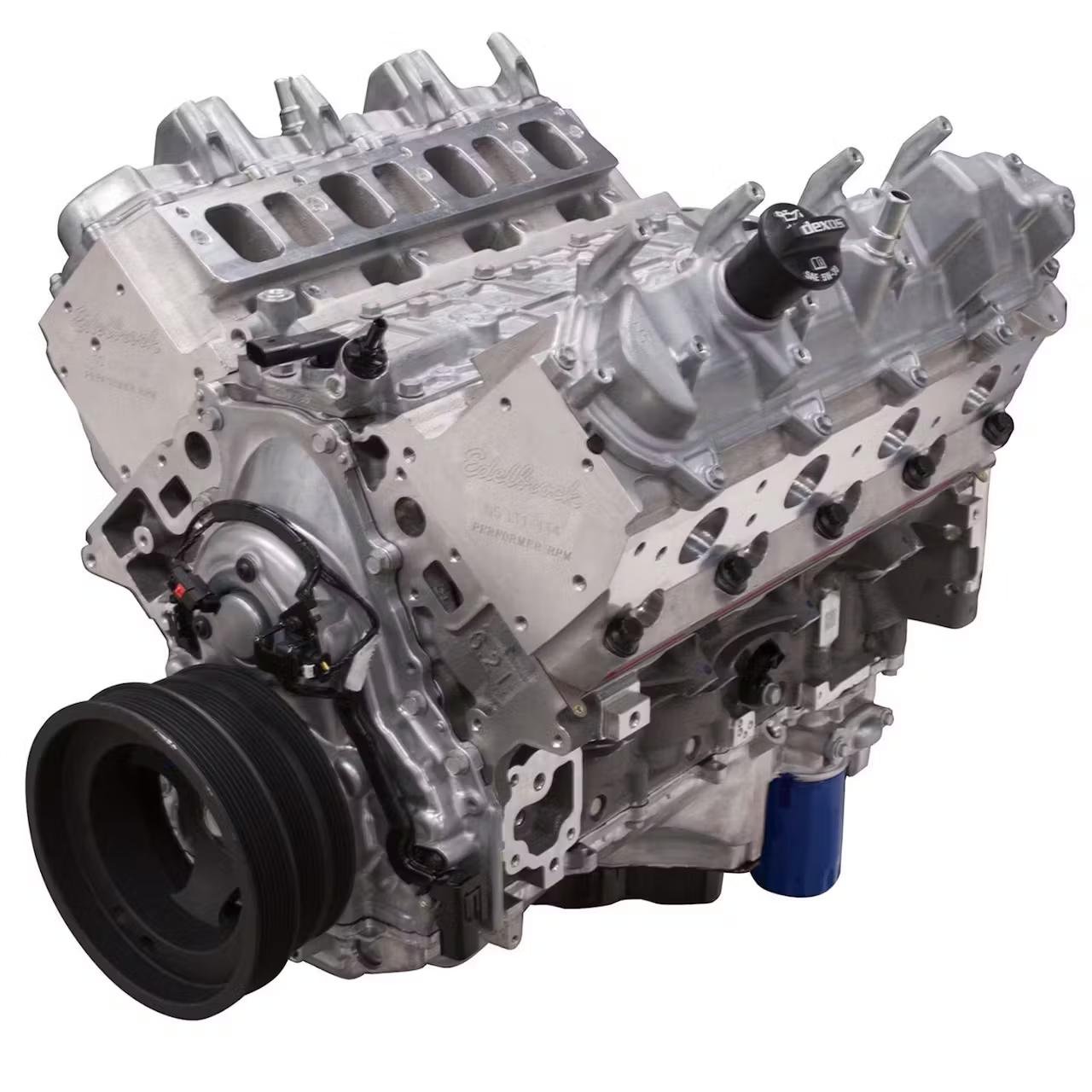

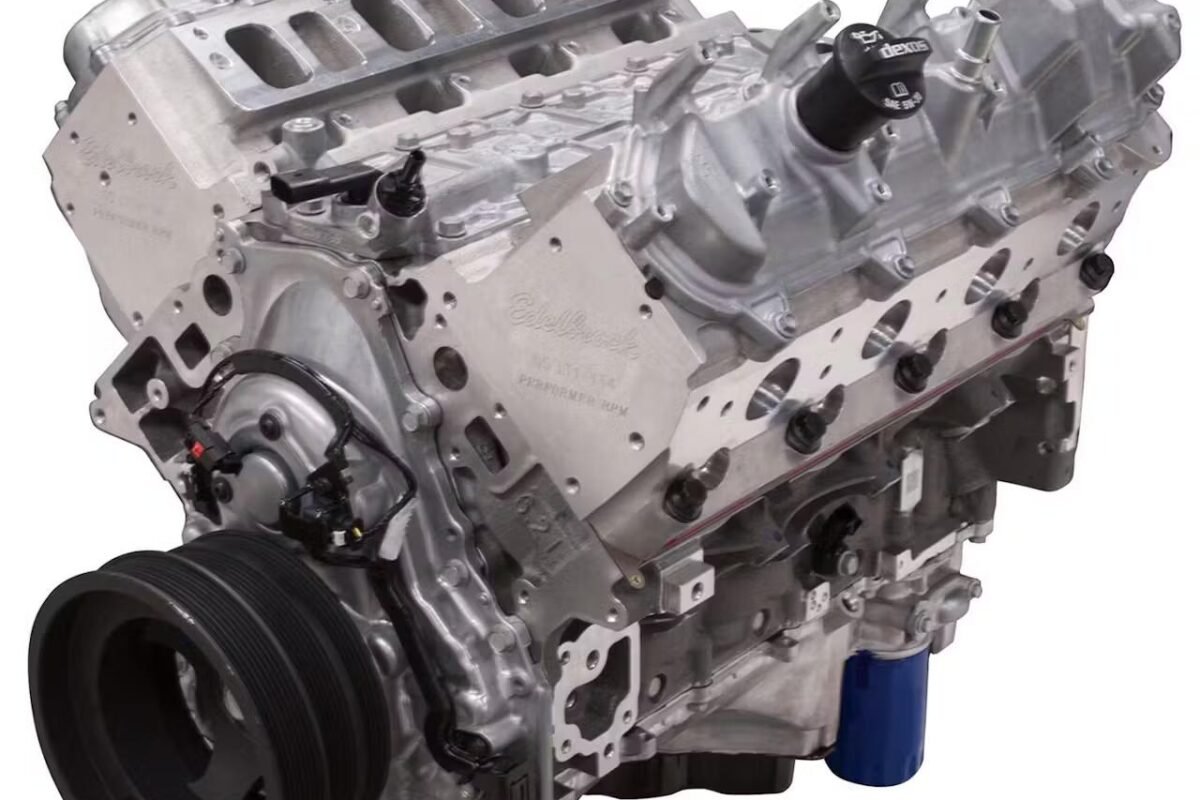

Edelbrock Part #46725 is the same long-block used on their Victor Jr. LS 416 crate engine that makes 602 horsepower and 538 ft-lbs. of torque. It features an aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons to create a 416ci LS3 stroker with 4.065″ bore and 4.000″ stroke. The core of this long-block are the Victor Jr. LS3 cylinder heads #61339 and Rollin’ Thunder hydraulic roller camshaft #2219. These are the key components that help this engine deliver impressive power potential. Its compact profile makes this engine a great solution for a hassle-free LS swap into any high-performance muscle car, street rod or truck!
Engine Specifications:
- Displacement: 416 c.i.d.
- Horsepower: N/A
- Torque: N/A
- Compression: 11.2:1
- Block: LS3 Aluminum
- Crankshaft: Forged 4340
- Pistons: Forged Aluminum
- Rods: Forged H-Beam
- Camshaft: Edelbrock Rollin’ Thunder #2219
- Rocker Arms: LS3, 1.7 ratio
- Cylinder Heads: Edelbrock Victor Jr. #61339
- Finish: Black powder coated
- Warranty: 2-year / Unlimited mileage
- Long Block only. Does not come with an induction system
Charts
-
Edelbrock Limited Warranty Registration Form (PDF)
-
Edelbrock Crate Engine Valve Adjustment (PDF)
KEY SPECS |
|
|---|---|
| MFG. Part # | 46725 |
| Brand | Edelbrock |
| Crate Engine Type | Long Block |
| Engine Displacement | 416 cu. in. |
| Compression Ratio | 11.2:1 |
| Camshaft Type | Hydraulic Roller Tappet |
| Cylinder Head Material | Aluminum |
| Carburetor Included | No |
| Intake Manifold Included | No |
| Distributor Included | No |
| Valve Covers Included | Yes |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | No |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | No |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | No |
| Spark Plug Wires Included | No |
| Computer Included | No |
| Wiring Harness Included | No |
GENERAL |
|
| Assembled | Yes |
| GTIN Code | 085347467259 |
| Notes | Black powdercoated block. |
| Sold in Quantity | Each |
