Description

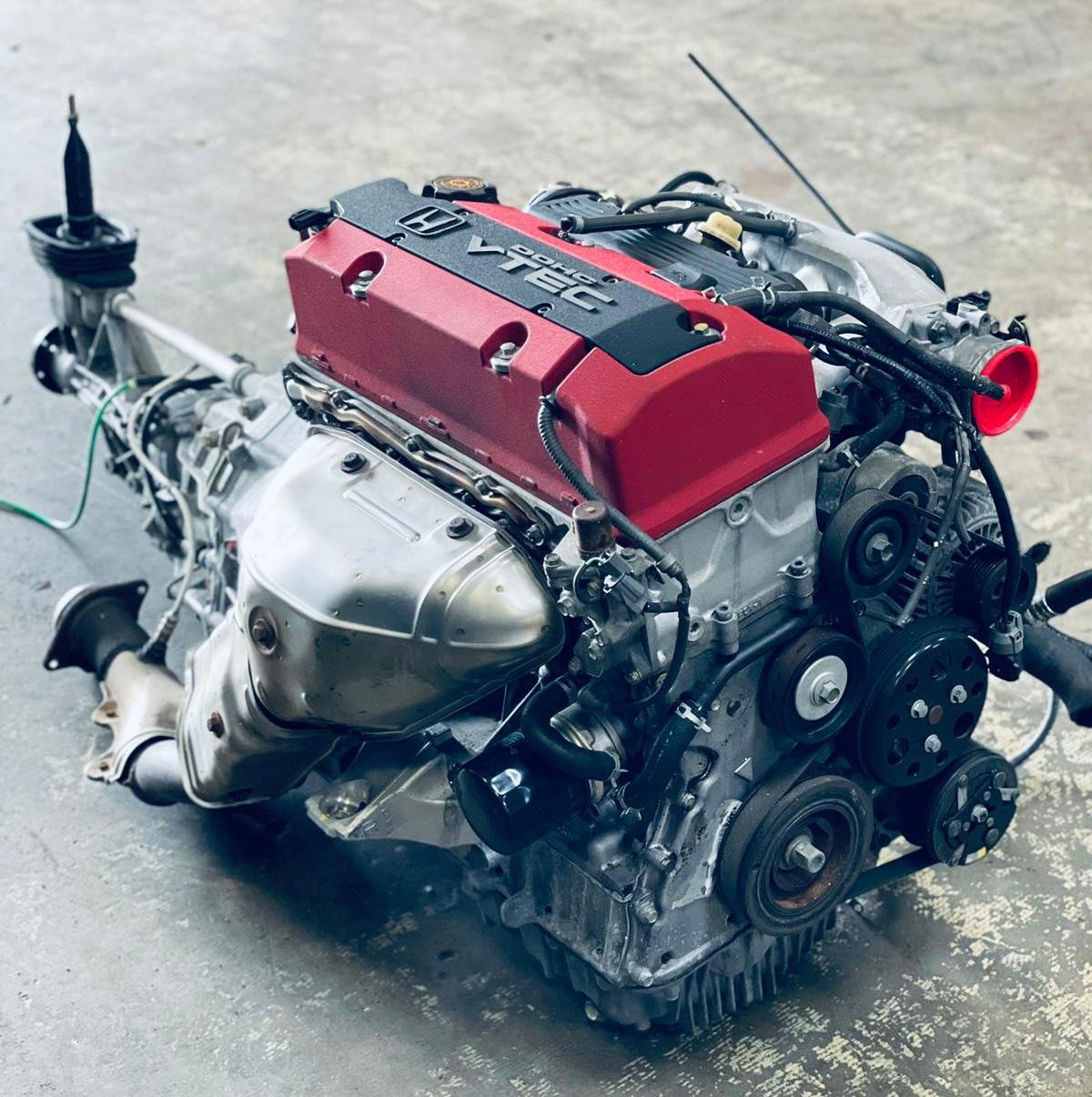

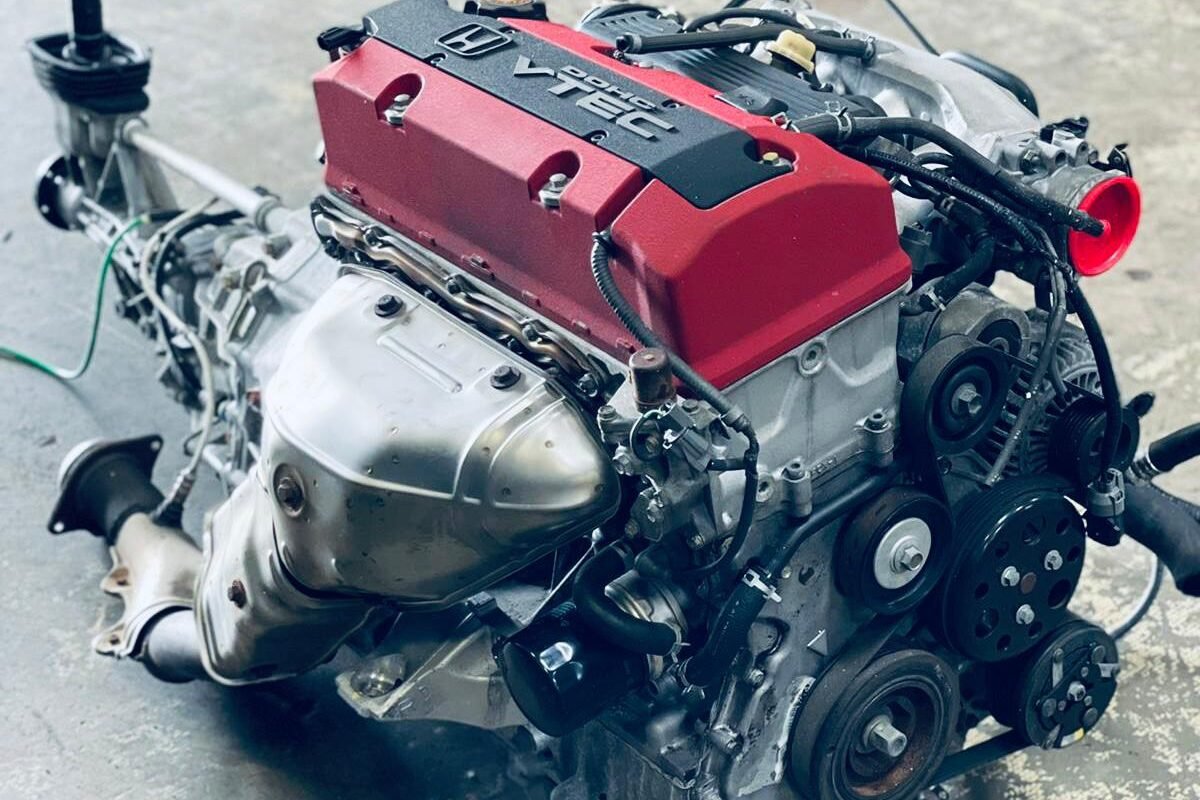

JDM Honda S2000 F20C Engine For Sale
JDM Honda S2000 F20C Engine For Sale.The robust and irregular F20C motor is a sporty inline-4 engine that was launched in the last quarter of 1999 specifically for the Honda S2000 model. It utilizes a compact aluminum block of cylinders with a height of 224 mm. Inside there is an 84 mm piston stroke crankshaft; with cylinder walls made of FRM material.
Quality, low mileage Honda S2000 F20C engine for sale at Tsonev Spare Parts. Ideal for all your Honda JDM motor swap or build projects.
Parts Included In The JDM Unit
- Complete Engine Head & Block
- ECU
- 6 Speed Transmission
- Shifter Cables
- Shifter Box
- Intake/Exhaust Manifolds
- Ignition Coils
- Alternator
- Power Steering Pump
- Injectors
- AC Compressor
- Fuel Rail
All other parts and accessories as seen in the product image.
*What You See Is Exactly What You Get!
Honda S200 (F20C) Engine Specs
| Manufacturer | Honda Motor Company |
| Also called | Honda F20 |
| Production | 1999-2009 |
| Cylinder block alloy | Aluminum |
| Configuration | Inline-4 |
| Valvetrain | DOHC 4 valves per cylinder |
| Piston stroke, mm (inch) | 84 (3.31) |
| Cylinder bore, mm (inch) | 87 (3.43) |
| Compression ratio | 11.0 11.7 |
| Displacement | 1998 cc (121.9 cu in) |
| Power output | 176 kW (240 HP) at 8,300 rpm 183 kW (250 HP) at 8,300 rpm |
| Torque output | 208 Nm (153 lb·ft) at 7,500 rpm 218 Nm (161 lb·ft) at 7,500 rpm |
| Redline | 8,900 |
| HP per liter | 120 125 |
| Fuel type | Gasoline |
| Weight, kg (lbs) | – |
| Fuel consumption, L/100 km (mpg) -City -Highway -Combined |
Honda S2k 13.9 (17) 7.8 (30) 10.0 (23.5) |
| Turbocharger | Naturally aspirated |
| Oil consumption, L/1000 km (qt. per miles) |
up to 0.5 (1 qt. per 1200 miles) |
| Recommended engine oil | 0W-40 5W-30 5W-40 5W-50 10W-30 10W-40 |
| Engine oil capacity, L (qt.) | 4.8 (5.1) |
| Oil change interval, km (miles) | 5,000-10,000 (3,000-6,000) |
| Normal engine operating temperature, °C (F) | – |
| Engine lifespan, km (miles) -Official information -Real |
– 300,000+ (180,000) |
| Tuning, HP -Max HP -No life span loss |
600+ – |
| The engine is installed in | Honda S2000 |
