Description
The Bert LMZ Transmission Kit for 1-Piece Rear Main Seal is a complete 2-speed racing transmission package designed specifically for 1986 and newer Chevrolet Small Block V8 engines equipped with a 1-piece rear main seal. Built around the proven Bert LMZ aluminum racing transmission, this kit is engineered to provide maximum horsepower transfer, lightning-fast shifting, and exceptional durability for dirt and asphalt circle track competition.
The Bert LMZ features an internal hydraulic clutch assembly that reduces rotating weight while upgraded dog-tooth gears provide faster, more precise shifts. With a direct-drive high gear, 600 lb-ft torque capacity, and a compact design that is approximately 2-5/8 inches shorter than a Muncie transmission, this package is an excellent choice for IMCA, WISSOTA, Modified, Late Model, Hobby Stock, and Street Stock racing applications.
Features
- Genuine Bert LMZ 2-Speed Racing Transmission Kit
- Designed for Chevy Small Block V8 engines with a 1-piece rear main seal
- Internal hydraulic clutch assembly
- Lightweight aluminum transmission case
- Upgraded dog-tooth gears for quick, positive shifts
- Two forward gears with reverse
- Direct-drive high gear for maximum power transfer
- Approximately 2-5/8 inches shorter than a Muncie transmission
- Low rotating mass for improved acceleration
- Heavy-duty bearings and precision-machined components
- Compatible with standard two-lever racing shifters
- Built for dirt and asphalt circle track racing
- Excellent durability for high-performance competition
Gear Ratios
- Low Gear: 2.40:1
- High Gear: 1.00:1 (Direct Drive)
- Reverse: Included
- Neutral: Yes
Specifications
- Brand: Bert Transmission
- Model: LMZ
- Transmission Type: 2-Speed Manual Racing Transmission
- Application: Chevy Small Block V8 (1-Piece Rear Main Seal)
- Torque Capacity: 600 lb-ft
- Case Material: Aluminum
- Approximate Weight: 40 lbs
- Input Shaft Diameter: 1.0625 inches
- Input Shaft Spline Count: 10
- Output Shaft Diameter: 1.375 inches
- Output Shaft Spline Count: 27
- Output Style: Slip Yoke
- Hydraulic Clutch: Internal
- Bellhousing Included: Yes
- Shifter Included: No
- Yoke Included: No

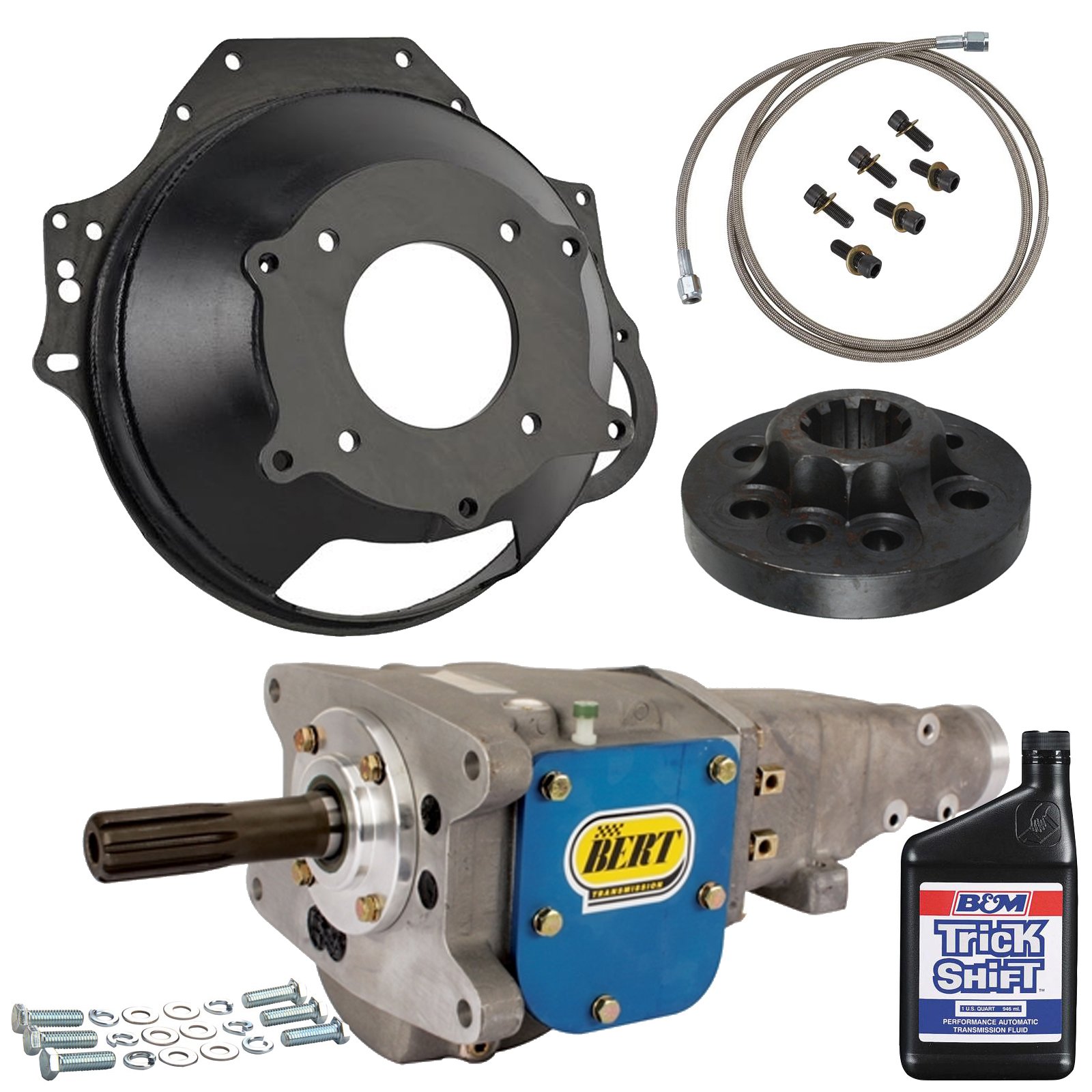

Kit Includes
- Bert LMZ Aluminum 2-Speed Racing Transmission
- Steel Bellhousing for 1-Piece Rear Main Seal Applications
- Steel Drive Flange
- Braided Hydraulic Clutch Line
- AN Hydraulic Adapter Fittings
- Bellhousing Bolt Kit
- Racing Transmission Fluid
- Installation Hardware
- Manufacturer Documentation
Recommended Applications
Ideal for:
- IMCA Modified
- WISSOTA Modified
- Dirt Late Model
- Hobby Stock
- Street Stock
- Crate Engine Racing
- Asphalt Modified
- Circle Track Racing
- Open Wheel Modified
- Custom Competition Chassis
Compatible with 1986 and newer Chevrolet Small Block V8 engines equipped with a 1-piece rear main seal.
Installation Requirements
Installation may require:
- Standard two-lever racing shifter
- Slip-yoke driveshaft
- Racing transmission mount
- Crossmember
- Hydraulic clutch pedal assembly
- Racing transmission fluid
- Professional drivetrain alignment
Professional installation is recommended to ensure optimum performance, reliability, and proper drivetrain operation.
Warranty
The Bert LMZ Transmission Kit for 1-Piece Rear Main Seal is backed by a 1-Year Limited Warranty, covering defects in materials and workmanship under normal racing use and proper installation.
Why Choose the Bert LMZ Transmission Kit?
The Bert LMZ Transmission Kit for 1-Piece Rear Main Seal is built for racers who demand lightweight construction, dependable performance, and maximum power delivery. Its 600 lb-ft torque capacity, internal hydraulic clutch, dog-tooth gear design, and compact aluminum construction reduce drivetrain losses while delivering fast, consistent shifts. Complete with a precision-fit steel bellhousing, drive flange, hydraulic components, and installation hardware, this kit provides a race-ready solution for serious circle track competitors.
